Workflows

A workflow is a document process modeled as a progression of stages and activities associated with those stages.

Workflows are defined by creating Workflow, Workflow Stage, Workflow Stage Activity, Workflow Stage Transition, and Workflow Activity Capacity custom metadata type records. When a workflow becomes active, a series of workflow-related custom objects (i.e. Workflow Instance, Workflow Instance Stage, and Workflow Instance Document) are instantiated to track the instance of the workflow.

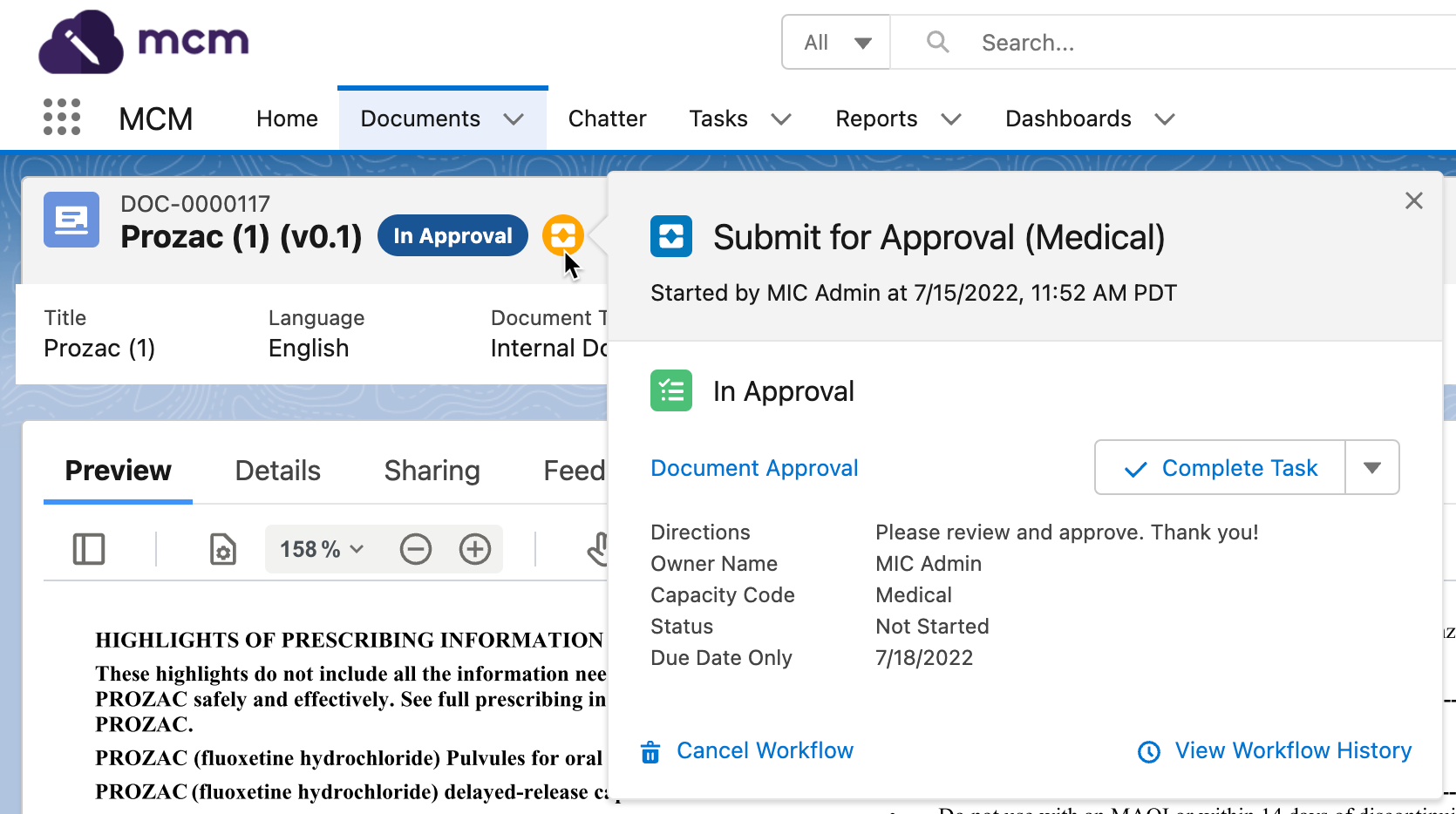

A Workflow Instance has a status (Pending, Complete, Canceled) and an outcome (Approved, Rejected, Completed). As the Workflow Instance transitions between stages, it can optionally assign activities and modify the status of the document associated with it. For example, a workflow can be configured to change the status of a document to In Review when the workflow starts.

Workflow Stage Activities include tasks, which are to-do items assigned to users to progress a document through a workflow.

Configuration​

Workflows are configured using custom metadata types. The custom metadata types that configure workflows include:

  • Workflow - a document process.

  • Workflow Stage - a possible step in a workflow.

  • Workflow Stage Activity - the type of activity or to-do item that upon completion and when paired with transitions activates different stages in a workflow.

  • Workflow Stage Transition - the criteria that must be met to move to a different stage in a workflow.

  • Workflow Activity Capacity - the capacity in which a user acts when reviewing an activity.

Workflows and Workflow Stages are associated with a one-to-many relationship. Each Workflow Stage can have multiple activities associated. Workflow Stage Transitions facilitate the transition of workflows between stages.

Workflows​

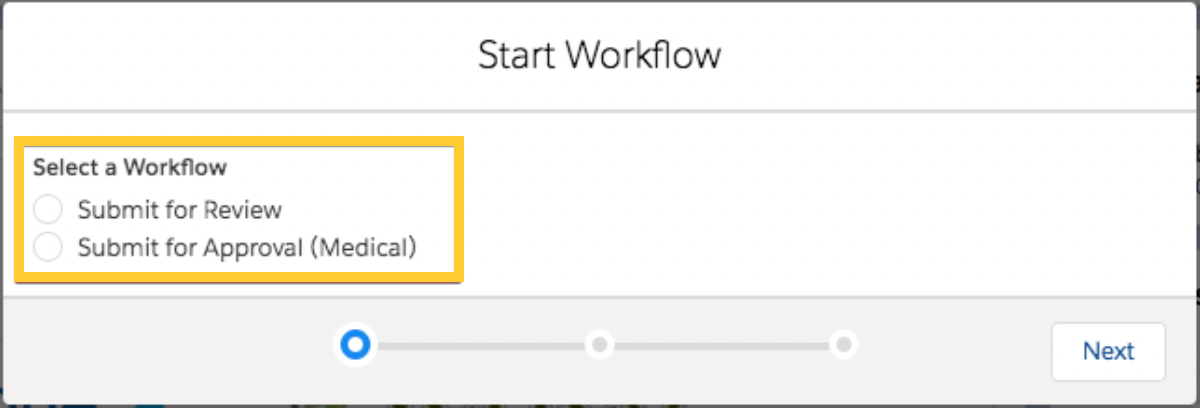

A workflow or document process is defined in the CM_Workflow__mdt custom metadata type. Each workflow is associated with a single lifecycle and has entry criteria that determine whether/when a document can enter the workflow. Only a single document is supported per workflow.

Key concepts​

  • Workflows are associated with a lifecycle.

  • For a document to enter a workflow, it must match the entry criteria configured for the workflow. Entry criteria are stored on the workflow's CM_Entry_Criteria__c field. Visit Criteria definition.

  • A single document is supported per workflow.

  • Auto-start workflows automatically start when a document is created. Visit Auto-start workflows.

Localization​

The name of the workflow is translated in the user interface using the custom label referenced in the workflow's CM_Custom_Label_API_Name__c field.

::: :::

Auto-start workflows​

To configure a workflow to start automatically when a document is created set the value of its CM_Auto_Start__c to true.

Note: Be careful when configuring auto-start workflows. If multiple auto-start workflows are found for a document, the document enters an error state and requires manual intervention.

Workflow Stages​

Workflow Stages are defined in the CM_Workflow_Stage__mdt custom metadata type and represent the list of possible steps in a workflow. Not every instance of a workflow will necessarily enter every defined Workflow Stage. The stages that become activated in a workflow instance depend on the outcome of workflow activities and the transitions configured for the workflow. For a list of workflow stage fields, visit Workflow Stage.

Key concepts​

  • Workflow Stages represent the list of possible steps in a workflow.

  • Workflows should have a single initial stage that represents the first step in the workflow.

  • Manual stages require user intervention to assign activities.

  • Workflow stages can (optionally) update the document state. Visit Document State.

  • Workflows can have multiple final stages. When the workflow reaches one of these stages, it is considered complete.

Document State​

To update the state of the document when the workflow enters the stage, populate the CM_Document_State__c field on CM_Workflow_Stage__mdt with the desired state. If null, the workflow will not update the document state when the workflow enters this stage. For a list of document state fields, visit Document State.

Note: The value of CM_Document_State__c must be a valid state for the lifecycle associated with the workflow.

Localization​

The name of the Workflow Stage is translated in the user interface using the custom label referenced in the Workflow Stage's CM_Custom_Label_API_Name__c field.

::: :::

Workflow Stage Activities​

Workflow Stage Activities are the types of activities or to-do items that upon completion and when paired with transitions activate different stages in a workflow and progress a document through the workflow. Workflow Stage Activities are defined in the CM_Workflow_Stage_Activity__mdt custom metadata type. You can associate many Workflow Stage Activities to a single Workflow Stage. For a list of Workflow Stage Activity fields, visit Workflow Stage Activity.

Key concepts​

  • Activity assignments can either be manual or automatic. Visit Assignment.

  • Activities are either general (e.g. peer review) or approval (e.g. MLR review) activities. Visit Type.

  • When the Require Electronic Signatures field on the MCM Global Setting custom metadata type is activated, all workflow activities require an electronic signature. Visit Electronic signatures.

Assignment​

The assignment of activities is configured using the CM_Assignment__c field. To prompt a user to manually assign activities, set the value to Manual or Document Role, otherwise, the activity is assigned to the Document Creator, Document Owner, Workflow Creator, or Workflow Owner.

If the activity is assigned to a Document Role, the activity is pre-populated with all users with that specified Document Role. Users can be added or removed from the pre-populated list before starting the workflow.

Note: Activities cannot be assigned to inactive users.

When the CM_Role_Assignment__c field is populated, the activity that is created as part of the workflow will create a specified Document Role for the owner of the activity. When the CM_Role_Assignment__c field is not populated, the Reviewer or Approver role is automatically assigned depending on whether the activity is configured as an Approval or General activity.

:::: ::: title :::

The Owner role cannot be selected in the Role Assignment field as a document is allowed to have only one Owner role. ::::

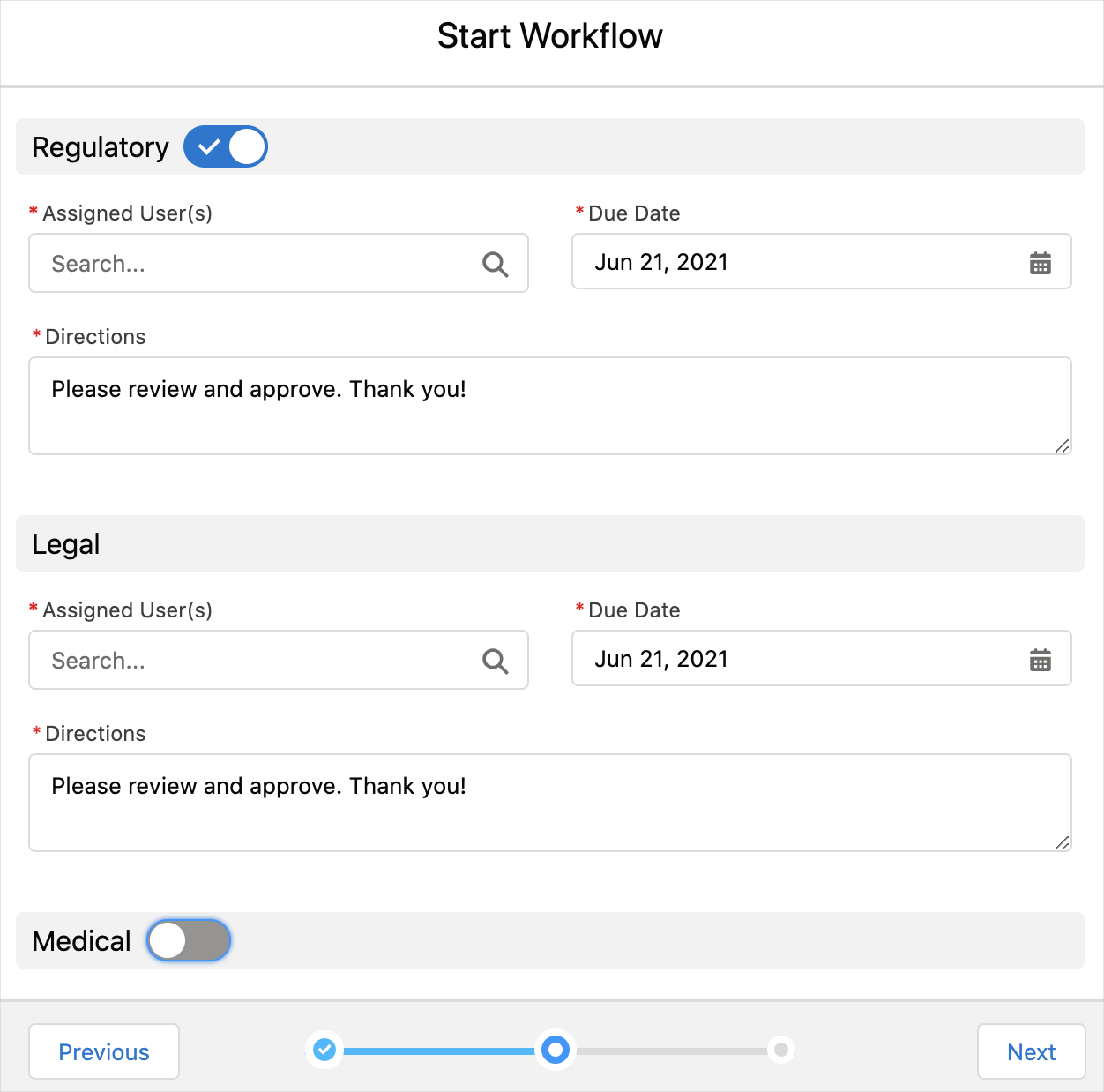

When an activity is configured as optional, the Start Workflow modal displays a toggle button next to the activity. The user can use this toggle to specify whether to create an assignment for that activity or not. At least one activity must be assigned before the workflow can be started.

::: :::

Type​

Activity type is configured using the CM_Type__c field. Activity types include:

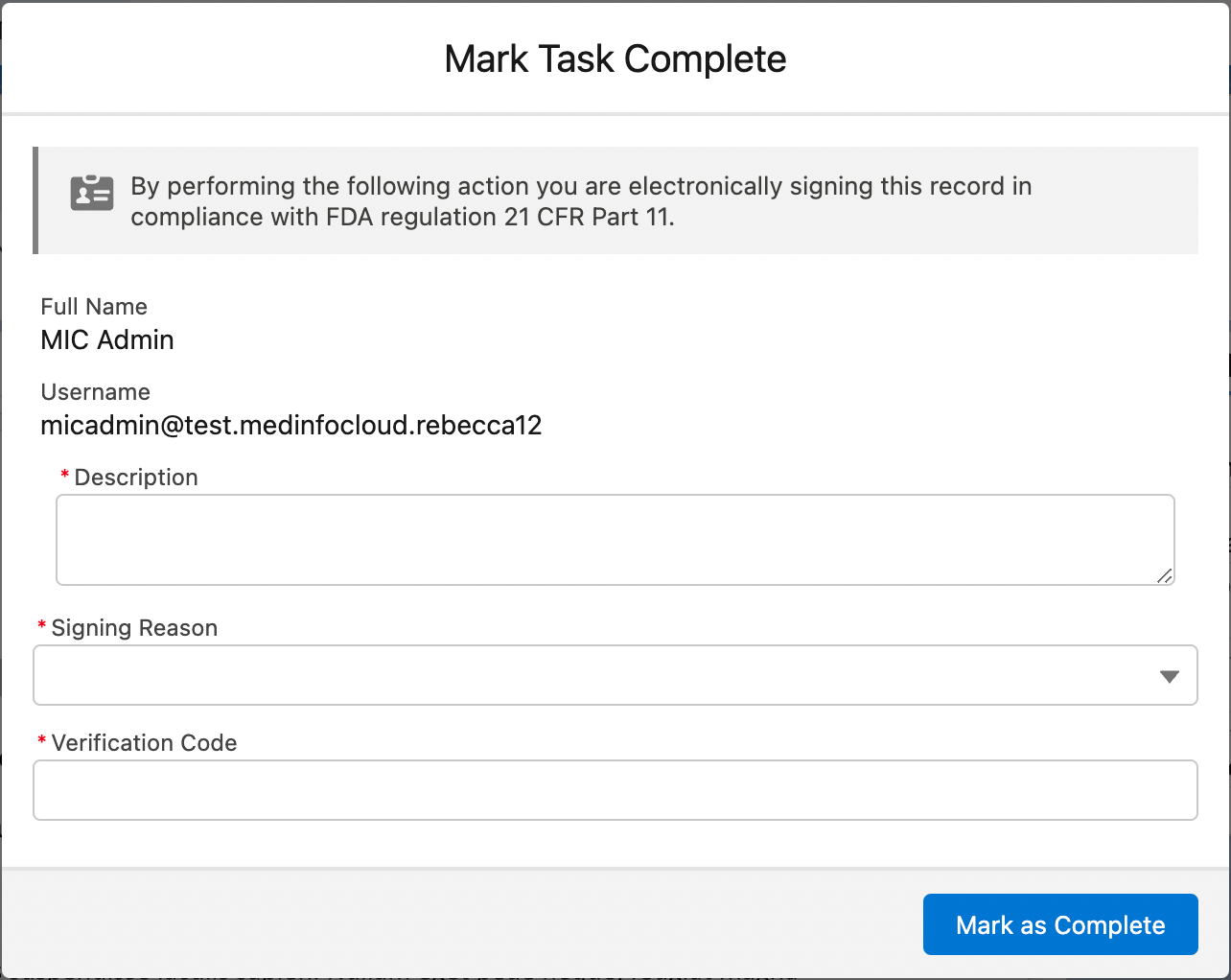

  • General activity. General activities are either pending or complete. When the user opens the activity modal, the Mark as Complete button appears.

    ::: :::

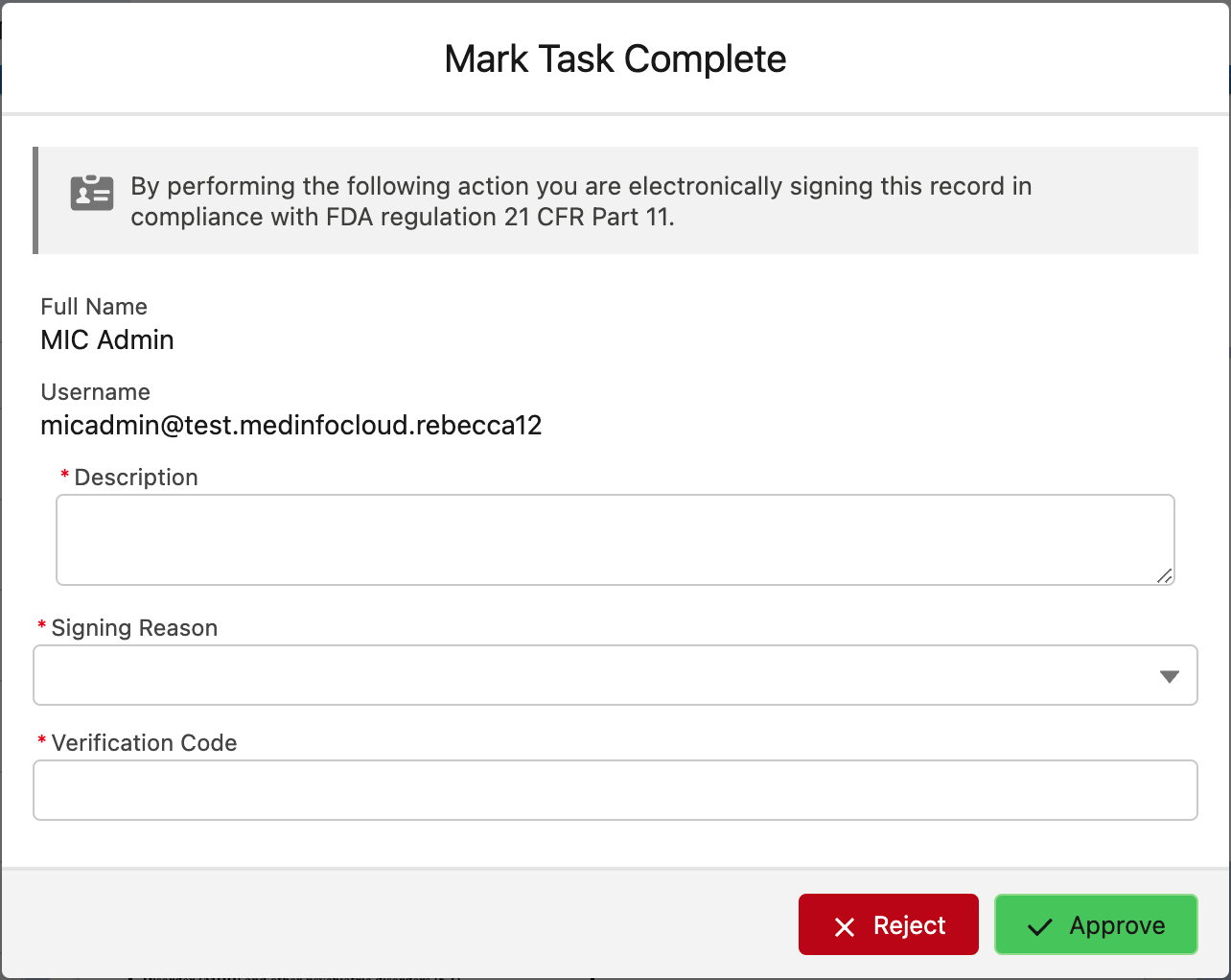

  • Approval activity. Approval activities require an Approve or Reject verdict.

    ::: :::

The buttons that are available in the Mark Task Complete modal, and therefore the outcomes that are available when the workflow task is completed or closed, can be customized with the Activity Action (mvn__CM_Activity_Action__mdt) and Workflow Stage Activity Action (mvn__CM_Workflow_Stage_Activity_Action__mdt) custom metadata types.

  1. For each action button to appear in the Mark Task Complete modal, create a new Activity Action metadata record. The default Approve, Reject, and Mark as Complete buttons are available out of the box via the Approve (CM_Approve), Reject (CM_Reject), and Complete (CM_Mark_Complete) metadata records.

    a. Configure the workflow event and status that should be used when one or all of the tasks are marked as complete or closed. For the list of available workflow events, reference Workflow Event Types below.

    b. Customize the icon and label that should appear in the Mark Task Complete modal as well as the label that should appear in the Task Tile component, as desired.

  2. For each custom Activity Action metadata record, create a corresponding Workflow Stage Activity Action metadata record. The default Activity Action metadata records do not need any Workflow Stage Activity Action metadata records.

    a. Relate the Workflow Stage Activity Action metadata record to the Workflow Stage Activity metadata record that the action buttons should be used for.

Workflow Stage Transitions​

Workflow Stage Transitions are the criteria that must be met to move a workflow to a different stage. Workflow Stage Transitions are defined in the CM_Workflow_Stage_Transition__mdt custom metadata type. You can associate many Workflow Stage Transitions to a single Workflow Stage. For a list of Workflow Stage Transition fields, visit Workflow Stage Transition.

Key concepts​

  • Workflow Stage Transitions dictate how and when a workflow will transition between stages.

  • The CM_Condition__c field houses the logic that determines when a transition executes. Transitions occur when the Condition evaluates to true.

  • The Destination Stage is the stage the workflow will transition to when the transition runs.

Note: The Destination Stage must be a stage under the same workflow as the current stage.

Conditions​

Each Workflow Stage Transition has a condition in which the transition executes. The condition is a JSON document that must conform to the following:

  • The path property must reference the event, documentVersion, or task object using dot notation.

  • The operator property must be Equals.

  • The value property must be a Workflow Event Type. Visit Workflow Event Types.

Workflow Event Types​

The following event types are valid enums to use when configuring transitions:

  • SingleTaskCompleted - published when a single non-approval workflow activity for the current stage has been completed.

  • AllTasksCompleted - published when all non-approval workflow activities for the current stage have been completed.

  • SingleReviewerApproved - published when the first reviewer marks their activity as Approved.

  • AllReviewersApproved - published when all reviewers have marked their activities as Approved.

  • SingleReviewerRejected - published when a single reviewer has marked their activity as Rejected.

  • AllReviewersRejected - published when all reviewers have marked their activities as Rejected.

Examples​

{
    "path": "event.mvn__CM_Type__c",
    "operator": "Equals",
    "value":  "SingleTaskCompleted"
}
{
    "AllTrue": [
        {
            "path": "event.type",
            "operator": "Equals",
            "value": "AllTasksCompleted"
        },
        {
            "path": "documentVersion.mvn__CM_Document_Type__c",
            "operator": "Equals",
            "value": "CM_Internal_Document"
        },
        {
            "path": "task.KLS_Type__c",
            "operator": "Equals",
            "value": "some custom type"
        }
    ]
}

Workflow Activity Capacity​

The Workflow Activity Capacity (CM_Workflow_Activity_Capacity__mdt) custom metadata type defines the capacities in which users act when reviewing workflow activities. For a list of Workflow Activity Capacity fields, visit Workflow Activity Capacity.

To configure a custom capacity for a specific Workflow Stage Activity, associate a Workflow Activity Capacity record to the appropriate Workflow Stage Activity record via the mvn__CM_Workflow_Stage_Activity__mdt.mvn__CM_Workflow_Activity_Capacity__c field.

Storing workflow data​

When a workflow is activated, the Workflow Instance (mvn__CM_Workflow_Instance__c), Workflow Instance Stage (mvn__CM_Workflow_Instance_Stage__c), and Workflow Instance Document (mvn__CM_Workflow_Instance_Document__c) custom objects begin storing information about the activated workflow. More specifically, a Workflow Instance record is created to track the workflow's progress, and a Workflow Instance Stage record is created each time the workflow transitions to a new stage. The Workflow Instance Document contains a list of documents associated with the workflow.
