Relationships

Documents can be related to products and other documents. Documents can also have multiple related documents under them and be related to other documents in multiple static relationships. There are five default document relationship types that you can use or deactivate, and you can create additional document relationship types to articulate document-to-document relationships. In the user interface, you can use the MCM - Related Documents component to display a list of the documents that are related to the current Document Version record or open the Relationship Visualizer for an interactive visualization of the current document's relationships.

Related Documents component

The Related Documents component lists the documents that are related to the current document version. With this component, users can create and relate new and existing documents to the current document.

Show previous versions of related documents

By default, the Related Documents component shows the latest relationship the current document has with other documents and hides the previous versions of related documents. For example, if Document A (v1.0) is related to Document B, which has v1.0 and v2.0, the component only shows Document B (v2.0) as a related document. To show all versions of the related documents, including the older versions (e.g., show both v1.0 and v2.0 of Document B):

1. Click the down arrow in the top right corner of the component.
2. Uncheck the Hide Relationships to Previous Versions option.

Open the Relationship Visualizer

The Relationship Visualizer is an interactive component that uses Scalable Vector Graphics (SVG) to show all of the current document's relationships. It supplements the list in the Related Documents component by providing a user-friendly visualization of how one or more documents are related to the current document.

To open the Relationship Visualizer from the Related Documents component:

1. Click the down arrow in the top right corner of the component.
2. Click Relationship Visualizer. A new tab will open.

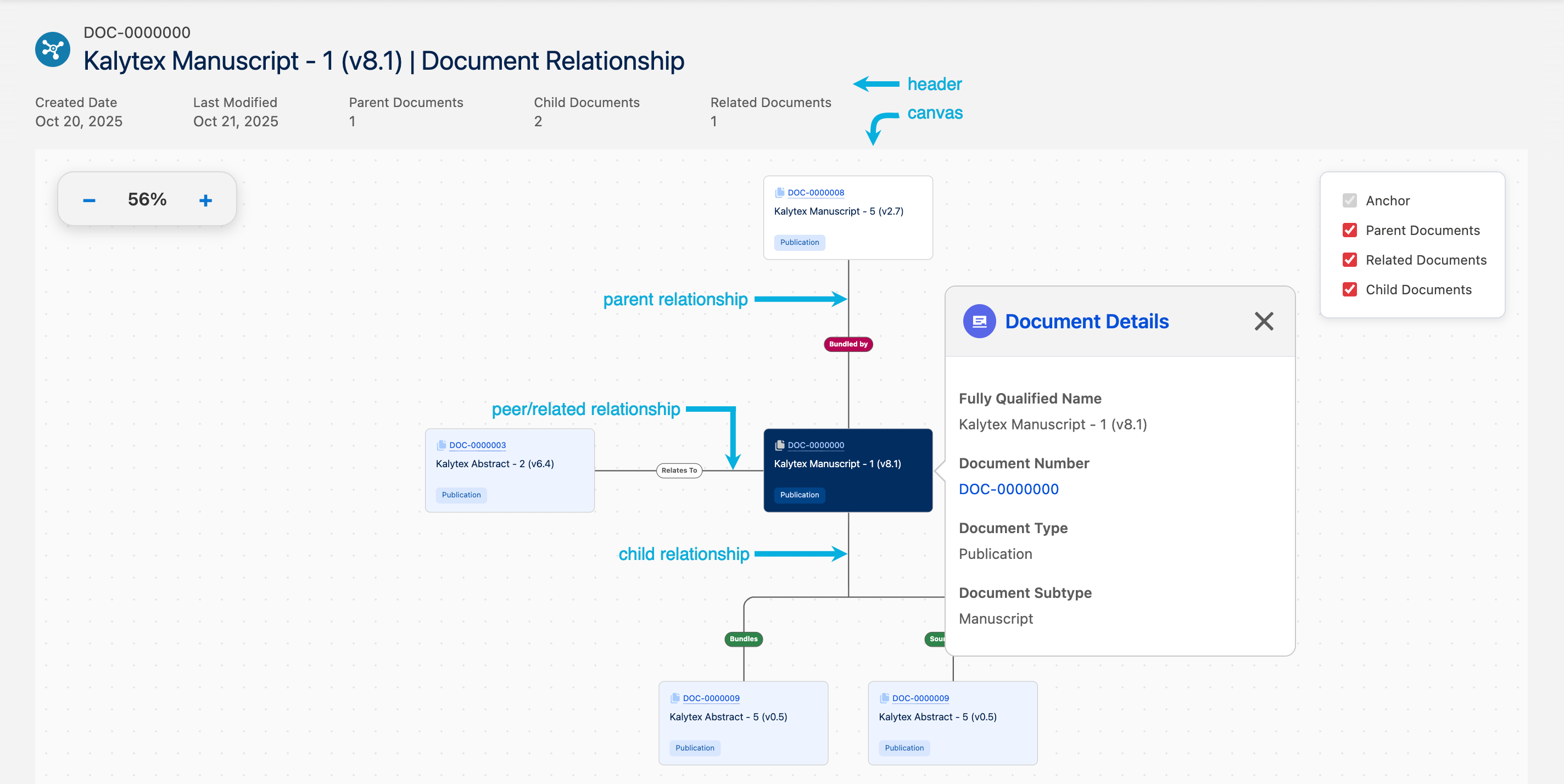

The Relationship Visualizer consists of two primary components: the header and the canvas. The header is at the top of the visualizer and displays general details about the current document and its relationships, including the date that the document was created and last modified and the number of parent, child, and related documents it has. The canvas is below the header and provides the actual visualization of the document's relationships. The canvas uses SVG to ensure that the visualization will not become pixelated or difficult to read even as a user zooms in and out of the canvas.

Each document in the canvas is a "node". The current document is always the central node and is referred to as the "anchor" document. All other documents appear either above, below, or beside the anchor document based on the type of relationship they have with the anchor document; parent-child relationships are always represented with vertical lines and nodes while peer or related relationships are always represented with horizontal lines and nodes. More specifically, parent documents are always above the anchor document, child documents are always below the anchor document, and peer/related documents are always next to the anchor document. Peer documents alternate between the left and right of the anchor document to ensure a clean and balanced visualization, and any document relationship can be identified as a peer relationship via the Is Peer (mvn__CM_Is_Peer__c) checkbox field on the Document Relationship Type (mvn__CM_Document_Relationship_Type__mdt) custom metadata type. The actual name of the document relationship type, such as whether the related document was sourced from or is a local version of the anchor document, appears on the line between the two nodes. A document may appear more than once on the canvas if it has multiple relationships with the anchor document, and users can filter out, or hide, certain document relationships by unchecking the node group from the legend in the top right corner of the canvas. The anchor document must always appear on the canvas and therefore cannot be unchecked.

Each document, or node, in the Relationship Visualizer appears as a card on the canvas with some general details about the document, including its name and document type. Additional details about the document can be found in a pop-up card that opens when the node is clicked. The pop-up card appears below the node by default but will automatically reposition itself to above or beside the node if there is no space on the canvas. Out of the box, the fields in the pop-up are taken from the Document Relationship Visualizer (mvn__CM_Document_Relationship_Visualizer) field set from the Document Version (mvn__CM_Document_Version__c) object. Users can click the Document Number (mvn__CM_Document_Number__c) value in the pop-up to open the corresponding Document (mvn__CM_Document__c) record in another tab.

You can configure the interactivity and appearance of various aspects of the Relationship Visualizer by modifying the Document Relationship (CM_Document_Relationship) Relationship Visualizer Configuration (mvn__RV_Relationship_Visualizer_Configuration__mdt) custom metadata record that is provided out of the box, including updating the fields in the pop-up card and the labels in the legend.

Field	Value
Apex Implementation Class	CM_DocumentRelationshipVisualizerService. :::warning This value should not be changed. :::
Default Legend Configuration	See configuration details below. "[{\"value\":\"anchor\",\"label\":\"CM_Legend_Anchor\",\"checked\":true},{\"value\":\"parent\" \"label\":\"CM_Legend_Parents\",\"checked\":true},{\"value\":\"related\" \"label\":\"CM_Legend_Related\",\"checked\":true},{\"value\":\"child\" \"label\":\"CM_Legend_Children\",\"checked\":true}]" :::note The anchor document will always be checked in the legend and will always appear in the canvas, even if the "checked" property is removed or set to false. :::
Enable Drop Shadow	Checked
Draggable	Checked
Relationship Label Max Length	15
Zoomable	Checked
Popup Title	Document Details
Object Name	mvn__CM_Document_Version__c. :::warning This value should not be changed. :::
Field Set Name	mvn__CM_Document_Relationship_Visualizer

Update pop-up fields

To configure the fields that appear in the pop-up card that opens when a user clicks on a node in the Relationship Visualizer, you must create a new Document Version field set and then update the Field Set Name (mvn__RV_Field_Set_Name__c) value on the out-of-the-box Document Relationship metadata record. If you want to continue to enable users to open the Document record that the node represents, make sure to include the Document Number field in the field set; the Document Number value will automatically appear as a hyperlink in the pop-up that takes users directly to the corresponding document in a new tab.

Update legend labels

To configure the labels in the legend for the different document types and relationship groups (i.e., anchor, parent, related, and child documents), you can either create new custom labels and update the Default Legend Configuration (mvn__RV_Default_Legend_Configuration__c) value on the out-of-the-box Document Relationship metadata record or modify the default values on the CM_Legend_Anchor, CM_Legend_Parents, CM_Legend_Related, and CM_Legend_Child custom labels.

Create document relationship types

In addition to using the out-of-the-box document relationship types, you can create and use custom document relationship types. To create and enable a new document relationship type:

1. Create a CM_Document_Relationship_Type__mdt record. Visit Document Relationship Type.
2. (Optional) Create a Document Type Relationship Type (CM_Document_Type_Relationship_Type__mdt) record to enable the relationship type to be used for specific document types/subtypes. The mvn__CM_Document_Type_Relationship_Type__mdt.mvn__CM_Document_Relationship_Type__c field must be set to the name of the CM_Document_Relationship_Type__mdt record that you created in step one. Visit Document Type Relationship Type.
3. Add a picklist value to mvn__CM_Document_Relationship__c.mvn__CM_Type__c. This value must be the DeveloperName of the CM_Document_Relationship_Type__mdt record that you created in step one. Visit Document Relationship.

Default document relationship types

A document relationship connects a document version to another document version. There are five default document relationship types:

• Bundle
• Relevant
• Sourced
• Translation
• Local Version

note

When a document in a relationship with other documents experiences a significant change in status, owners of the related documents should be notified. For example, if a global document is updated, owners of any local versions should need to be notified. Visit System events.

Bundle

A Bundle relationship indicates that CM_Document_Version_2__c should be bundled with CM_Document_Version_1__c when CM_Document_Version_1__c is selected. In other words, when a document with a Bundle relationship is selected for a medical inquiry fulfillment, the bundled material is automatically packaged with it (fulfillment package).

note

A Bundle relationship only works in one direction. For example, from the Document A record, you create a Bundle relationship with Document B, but from the Document B record, you do not create a Bundle relationship with Document A. If you select Document A for fulfillment, Document B is added to the fulfillment package. However, if you select Document B for fulfillment, Document A is not added to the fulfillment package.

Bundle relationships are created manually. To view Bundle relationships or create a Bundle relationship, navigate to the Related Documents component on a document record.

Relevant

A Relevant relationship helps with content management and indicates CM_Document_Version_2__c is relevant to CM_Document_Version_1__c. Reviewers and Approvers use Relevant documents for internal fact-checking. For example, if Document B provides input into a document (Document A), add Document B as a Relevant document to Document A.

Relevant relationships are created manually from the Related Documents component on a document record.

Sourced

A Sourced relationship indicates CM_Document_Version_2__c is sourced from CM_Document_Version_1__c. For example, if you make a copy of a Global document, the Local copy lists the Global document as Sourced.

If you clone a document, Regulated Content Cloud automatically creates a Sourced relationship between the source document and the cloned document. Regulated Content Cloud also automatically creates a Sourced relationship for Translations.

Translation

A Translation relationship indicates that CM_Document_Version_2__c is a translation of CM_Document_Version_1__c. Create a Translation when you want to add a translated version of the document that you are viewing to Regulated Content Cloud. The languages of both documents should be different, but the content should be the same.

When you create a new translation, the metadata from the sourced document version automatically populates in the Document Wizard. As you progress through the Document Wizard, you can make changes to the metadata and then save the new translation.

note

A relationship modeling a translation of a translation is not supported.

Local Version

A Local Version relationship indicates CM_Document_Version_2__c is a local version of CM_Document_Version_1__c. This relationship is created when you add a version of a Global document that meets local standards. In the Related Documents component of the document record, the Global document lists all Local Versions.

Local Versions can be multi-leveled. For example, Document C is a local version of Document B, and Document B is a local version of Document A.

When you create a new local version, the metadata from the sourced document version automatically populates in the Document Wizard. As you progress through the Document Wizard, you can make changes to the metadata and then save the new local version.

Metadata

The primary metadata used to manage document relationships include:

• Document Relationship (mvn__CM_Document_Relationship__c) - a polymorphic junction object between either two document version records or a document version and a product.
• Document Relationship Type (mvn__CM_Document_Relationship_Type__mdt) - specifies the types of document relationships.
• Document Type Relationship Type (mvn__CM_Document_Type_Relationship_Type__mdt) - connects the Document Relationship Type (CM_Document_Relationship_Type__mdt) and Document Type (CM_Document_Type__mdt) custom metadata types.
