Objects

This reference page provides information about the objects that the product uses. Each object section on this page includes a description of the object, an entity relationship diagram for that object, and a table of custom and standard fields that the object uses. The schema tables do not include standard fields that the product does not use out of the box.

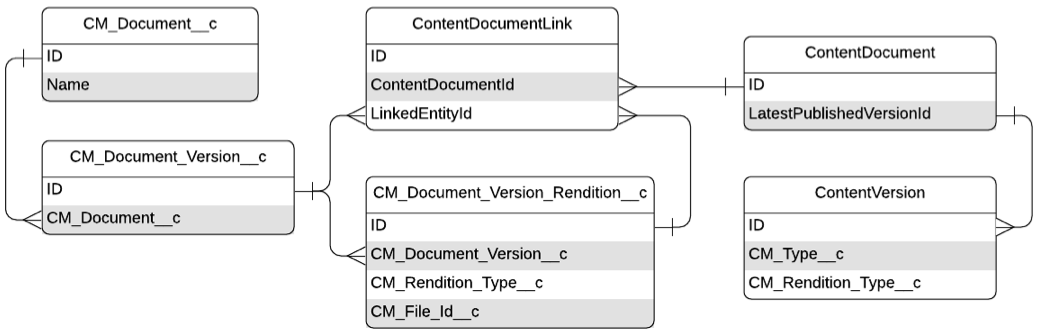

The simplified module entity relationship diagram below displays many of the primary objects and their relationships. The diagram does not depict every object or relationship that the module uses. To see a diagram for a particular object that contains all relevant relationships, navigate to that object's section on this page or use Salesforce's Schema Builder.

Account

The Account standard object stores information about a person or business. Accounts can be:

• Health Care Professionals (HCP), e.g. doctors and pharmacists

• Non-HCPs, e.g. consumers and payers

• Employees, e.g. sales representatives and medical science liaisons (MSL)

• Institutions, e.g. hospitals and pharmacies

Note: The table below only includes custom fields.

Account schema

Field label	API name	Data type	Description
Account Name Formula	MED_Account_Name_Formula__c	Formula (Text)	Returns the formatted name of the account that can be used for quick display or stamped values.
Anonymize	MED_Anonymize__c	Checkbox	A checkbox for anonymizing an Account. When checked, a daily batch job will check if all the Cases have been closed for the Account and if so, will Anonymize the account.
Company	MED_Company__c	Picklist	Company associated with the Employee Account.
Country	MED_Country__c	Picklist	Primary country for the account.
Country Summary	mvn__MED_Country_Summary__c	Picklist (Multi-Select)	Compiles the countries listed in the account and contact information country fields.
Credentials	MED_Credentials__c	Picklist	Picklist of the professional's (Person Account) credentials. Edit the picklist to change the available credentials.
Employee Type	MED_Employee_Type__c	Picklist	Type of employee.
External ID	MED_External_ID__c	Text	External ID is used for data loading and master data management integrations.
Gender	MED_Gender__c	Picklist	Gender of the account.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold on the record. If true, the record cannot be modified, anonymized, or deleted.
Locked	MED_Locked__c	Formula (Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or canceled or if a legal hold has been placed on it.
Override Lock	MED_Override_Lock__c	Checkbox	Allows for this account to be edited even when it is locked.
Primary Language	MED_Primary_Language__c	Picklist	Primary language of the account.
Provider ID	mvn__MED_Provider_ID__c	Text(50) (Unique Case Insensitive)	Used to identify health care providers by region or country. Must follow industry standards and be unique to match across internal and 3rd party systems.
Provisional ID	MED_Provisional_ID__c	Text(18)	no longer uses this field to pass a unique identifier to Veeva when an Account is created.
Record Type Name	MED_Record_Type_Name__c	Formula(Text)	Displays the Name of the Account Record Type.
Request to Anonymize	MED_Request_to_Anonymize__c	Checkbox	Used to request account anonymization by another user who has permission to do so. Used to drive list views/reports.
Salutation	MED_Salutation__c	Picklist	Salutation of the Account. Used in Cover Letters.
Source	MED_Source__c	Picklist	Source system of the account information.
Specialty	MED_Specialty__c	Picklist	Picklist of the professional's specialty. Edit the picklist to change the available values.
Status	MED_Status__c	Picklist	Account status used in DCR and account management.

Activity

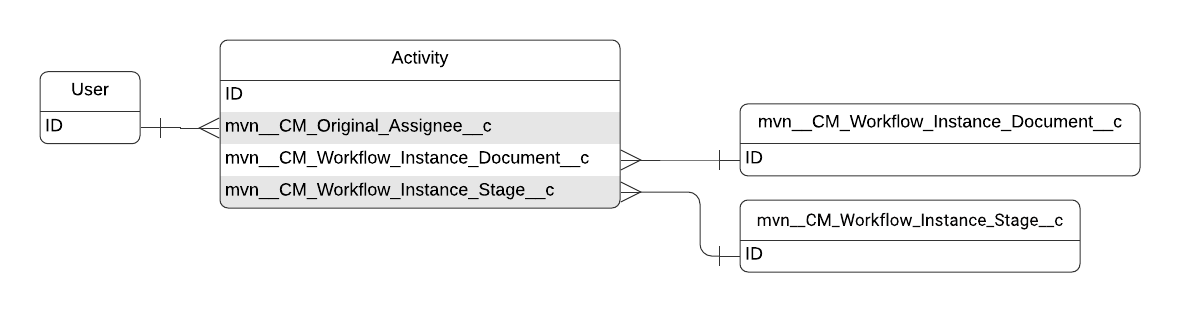

The primary metadata used to store task data is the Task standard object. The Task object inherits all of its fields from the Activity standard object. For more information on the Task object, visit Salesforce's documentation.

Activity schema

Field label	API name	Data type	Description
Assigned Document Role Developer Name	mvn__CM_Assigned_Document_Role_Developer_Name__c	Text(40)	System maintained field with the assigned document role for this workflow task.
Capacity Code	mvn__CM_Capacity_Code__c	Text(255)	Capacity in which this activity is being carried out.
Created By Name	mvn__CM_Created_By_Name__c	Formula (Text)	Name of the user who created the activity.
Directions	mvn__CM_Directions__c	Text Area(255)	Directions to the assignee.
Document Version	mvn__CM_Document_Version__c	Lookup(Document Version)	Id of the associated Document Version.
Document Version Fully Qualified Name	mvn__CM_Document_Version_Fully_Qualified_Name__c	Formula (Text)	Fully Qualified Name of the document version. The Fully Qualified Name is comprised of the document version's Title followed by the Version Number. For example, if the Fully Qualified Name of a document version is Dosing Guide (v0.4), Dosing Guide is the Title, and 0.4 is the Version Number.
Notifications Muted	mvn__CM_Notifications_Muted__c	Checkbox	When true, notifications that would be sent from updates on this task will not be sent.
Original Assignee	mvn__CM_Original_Assignee__c	Lookup(User)	Name of the user who the activity was originally assigned to before the activity was reassigned to a delegated approver.
Owner Name	mvn__CM_Owner_Name__c	Formula (Text)	Name of the user who is assigned the activity.
Record Type Developer Name	mvn__CM_Record_Type_Developer_Name__c	Formula (Text)	API name of the record type.
Record Type Name	mvn__CM_Record_Type_Name__c	Formula (Text)	Name of the record type.
Signing Reason	mvn__CM_Signing_Reason__c	Picklist	Reason a user completed the activity. Picklist values include: - I have reviewed this document - I am the author of this document
TwoFactorInfoId	mvn__CM_TwoFactorInfoId__c	Text(18)	Record ID of the TwoFactorInfo record used to electronically sign this activity.
Verification Code	mvn__CM_TOTP_Code__c	Text(100)	One-time code that the activity owner inputs when marking the activity as complete. This code verifies the activity owner's identity. This field is only used when electronic signature is enabled.
Workflow Instance Document	mvn__CM_Workflow_Instance_Document__c	Lookup(Workflow Instance Document)	Id of the associated Workflow Instance Document.
Workflow Instance ID	mvn__CM_Workflow_Instance_ID__c	Formula (Text)	Id of the associated Workflow Instance.
Workflow Instance Stage	mvn__CM_Workflow_Instance_Stage__c	Lookup(Workflow Instance Stage)	Id of the associated Workflow instance Stage.
Workflow Process Flag	mvn__CM_Workflow_Process_Flag__c	Checkbox	System field used when this activity is being processed by a workflow service.

Adverse Event

The Adverse Event object stores information on perceived, unintended, or unfavorable symptoms of a product and sends that information out for processing. Adverse Event capture is based on the ICH E2B (R3) definition and contains these sections:

• C.1

• C.5

• H.1

• H.2

The Adverse Event object has a one-to-many lookup relationship with the Interaction object; a single Interaction record can be associated to multiple Adverse Event records.

Adverse Event schema

Field label	API name	Data type	Description
Additional Documents Available	MED_Additional_Documents_Available__c	Picklist	E2B (R3): C.1.6.1 Are Additional Documents Available? User guidance: When retransmitting information, the sender (retransmitter) indicates 'true' in this data element only if they have the documents available. Conformance: Required Data type: Boolean OID: None Value allowed: false, true
AE Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
AE Owner	MED_Owner_HyperLink__c	Formula (Text)	Hyperlink to Owner record page.
Alerts	MED_Alerts__c	Formula (Text)	Shows a composite summary of different flags (urgent, roll up, escalated, locked, SLA).
Anonymize	MED_Anonymize__c	Checkbox	Indicates if the record should be anonymized. If True, a workflow removes personally identifiable information (PII) from the record.
Autopsy Cause of Death	MED_Autopsy_Cause_of_Death__c	Text(250)	E2B (R3): D.9.4.r.2 Autopsy-determined Cause(s) of Death (free text) Conformance: Optional, but required if D.9.4.r.1 is populated. Data type: 250AN OID: None Value allowed: Free text
Autopsy Done?	MED_Autopsy_Done__c	Picklist	E2B (R3): D.9.3 Was Autopsy Done? Conformance: Optional, but required if D.9.1 is populated. Data type: Boolean OID: None Value allowed: false, true nullFlavor: ASKU, NASK, UNK
Case Thread Token	MED_Case_Thread_Token__c	Formula (Text)	Copy of the related Case thread token that can be used for email merge fields.
Caused or Prolonged Hospitalization	MED_Caused_or_Prolonged_Hospitalization__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
Concomitant Therapies	MED_Concomitant_Therapies__c	Checkbox	E2B (R3): D.7. 3 Concomitant Therapies User guidance: When this data element is set to 'true', details should be provided in the narrative section. Conformance: Optional Data type: Boolean OID: None Value allowed: True
Congenital Anomaly/Birth Defect	MED_Congenital_Anomaly_Birth_Defect__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
Country of Occurrence	MED_Country_of_Occurrence__c	Picklist	E2B (R3): Moved to E.i.9 (AE Reaction)
Date of Awareness	MED_Date_of_Awareness__c	Date	Captures the date of first awareness for the Adverse Event. E2B (R3): C.1.4 Date Report Was First Received from Source User guidance: For organizations transmitting an initial case, this data element should be the date when the information was received from the primary source and fulfilling the 4 minimum criteria, as described in the Section 3.3.1. When retransmitting information received from another regulatory agency or another company or any other secondary source, C.1.4 should be the date the retransmitter first received the information. Conformance: Required Data type: Date / Time OID: None
Date of Death	MED_Date_of_Death__c	Date	E2B (R3): D.9.1 Date of Death Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
Date/Time Closed	MED_Date_Time_Closed__c	Date/Time	Date and time record was closed.
Date/Time Opened	MED_Date_Time_Opened__c	Date/Time	Date and time record was created.
Date/Time Submitted	MED_Date_Time_Submitted__c	Date/Time	Date and time record was submitted to pharmacovigilance.
Disabling/Incapacitating	MED_Disabling_Incapacitating__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
Display Name	MED_Display_Name__c	Formula (Text)	Resolved value becomes the Adverse Event tab label.
Due Date	MED_Due_Date__c	Date/Time	Date and time the record is due to be closed.
Due Date Warning	MED_Due_Date_Warning__c	Date/Time	Hidden field on the layout that is used as a formula helper to provide the time when the Alerts field should display the due date warning icon.
Email To Address	MED_Email_To_Address__c	Text Area(255)	List of email addresses for the local pharmacovigilance team that the Product Quality Complaint information should be emailed to. This list is based on the Local Setting custom metadata.
Escalated?	MED_Escalated__c	Formula (Text)	Displays icon if the record is escalated.
ICSR Batch Number	MED_ICSR_Batch_Number__c	Text(255)	Batch number for the ICSR report generated for this Adverse Event.
Integration Message	MED_Integration_Message__c	Long Text Area(32768)	Message returned from E2B integration.
Integration Status	MED_Integration_Status__c	Picklist	Status of integration with system to process E2B file.
Interaction	MED_Case__c	Lookup(Interaction)	Lookup to the Interaction associated to the Adverse Event.
Is Closed	MED_Is_Closed__c	Formula (Checkbox)	Indicates if the record is closed.
Is Escalated	MED_Is_Escalated__c	Formula (Checkbox)	Indicates if the Adverse Event is currently escalated to another user. The field is marked as true if the Adverse Event Owner is different than the Interaction Owner.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold on the record. If true, the record cannot be modified, anonymized, or deleted.
Life Threatening	MED_Life_Threatening__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
List of Documents Held	MED_List_of_Documents_Held__c	Text(100)	E2B (R3): C.1.6.1.r.1 Documents Held by Sender User guidance: A description of the documents held by the sender relevant to this ICSR (e.g. clinical records, hospital records, autopsy reports, ECG strips, chest X-ray, or photographs) should be listed individually in this data element. Conformance: Optional, but required if C.1.6.1 is 'true'. Data type: 2000AN OID: None Value allowed: Free text
Locked	MED_Locked__c	Formula (Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or cancelled or if a legal hold has been placed on it.
Locked Flag	MED_Locked_Flag__c	Formula (Text)	Displays icon when the record is locked.
MedDRA Reported Cause Of Death	MED_MedDRA_Reported_Cause_Of_Death_LLT__c	Text(8)	This data element captures the MedDRA LLT code for the reported cause of death. E2B (R3): D.9.2.r.1b Conformance: Optional, but required if D.9.2.r.1a is populated. Data type: 8N OID: 2.16.840.1.113883.6.163
MedDRA Version Autopsy Cause of Death	MED_MedDRA_Autopsy_Cause_of_Death__c	Text(4)	E2B (R3): D.9.4.r.1a MedDRA Version for Autopsy-determined Cause(s) of Death User guidance: MedDRA terms should be used where applicable. Conformance: Optional, but required if D.9.4.r.1b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot)
MedDRA Version Reported Cause of Death	MED_MedDRA_Reported_Cause_of_Death__c	Text(4)	E2B (R3): D.9.2.r.1a MedDRA Version for Reported Cause(s) of Death User guidance: MedDRA terms should be used where applicable. Conformance: Optional, but required if D.9.2.r.1b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot)
Narrative	MED_Narrative__c	Long Text Area(100000)	E2B (R3): H.1 Case Narrative Including Clinical Course, Therapeutic Measures, Outcome and Additional Relevant Information User guidance: This data element captures a focused, factual and clear description of the case, including the words or short phrases used by the reporter. Conformance: Required Data type: 100000AN OID: None Value allowed: Free text
Other Medically Important Condition	MED_Other_Medically_Important_Condition__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
Owner	MED_Owner_Name_Formula__c	Formula (Text)	Calculates the owner name to use for tracking ownership.
Parent Age (Years)	MED_Parent_Age__c	Number(3, 0)	E2B (R3): D.10.2.2a Age of Parent (number) User guidance: The date of birth should be used if the precise birthday is known; otherwise the age should be used. Conformance: Optional, but required if D.10.2.2b is populated. Data type: 3N OID: None Value allowed: Numeric
Parent Birthdate	MED_Parent_Birthdate__c	Date	User guidance: The date of birth should be used if the precise birthday is known; otherwise the age should be used. E2B (R3): D.10.2.1 Date of Birth of Parent Conformance: Optional Data Type: Date / Time OID: None Value Allowed: nullFlavor: MSK, ASKU, NASK
Parent Gender	MED_Parent_Gender__c	Picklist	Sex of the parent. E2B (R3): D.10.6 Sex of ParentConformance: Required if any data element in D.10 section is populated. Data type: 1N OID: 1.0.5218 Value allowed: 1=Male, 2=Female nullFlavor: UNK, MSK, ASKU, NASK
Parent Height (cm)	MED_Parent_Height__c	Number(3, 0)	Height of parent in cm. E2B (R3): D.10.5 Height (cm) of Parent Conformance: Optional Data type: 3N OID: None Value allowed: Numeric
Parent Identification	MED_Parent_Identification__c	Text(60)	E2B (R3): D.10.1 Parent Identification User guidance: This section should be used in the case of a parent-child or parent-fetus report where the parent had no reaction or event. Conformance: Optional Data type: 60AN OID: None Value allowed:Free text nullFlavor: MSK, ASKU, NASK, UNK
Parent Last Menstrual Period	MED_Parent_Last_Menstrual_Period__c	Date	E2B (R3): D.10.3 Last Menstrual Period Date of Parent Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
Parent Relevant Medical History	MED_Parent_Relevant_Medical_History__c	Long Text Area(10000)	E2B (R3): D.10.7.2 Text for Relevant Medical History and Concurrent Conditions of Parent User guidance: Text for relevant medical history and concurrent conditions of parent (not including reaction/event). Conformance: Optional Data type: 10000AN OID: None Value allowed: Free text
Parent Weight (kg)	MED_Parent_Weight__c	Number(6, 0)	Weight of parent in kg. E2B (R3): D.10.4 Body Weight (kg) of Parent Conformance: Optional Data type: 6N OID: None Value allowed: Numeric
Patient Age	MED_Patient_Age__c	Number(5, 0)	E2B (R3): D.2.2a Age at Time of Onset of Reaction / Event (number) User guidance: If several reactions/events are in the report, use the age at the time of the first reaction/event. For fetal reactions/events, use the Gestation period when reaction/event was observed in the fetus. Conformance: Optional, but required if D.2.2b is populated. Data type: 5N OID: None Value allowed: Numeric
Patient Age Group	MED_Patient_Age_Group__c	Picklist	E2B (R3): D.2.3 Patient Age Group (as per reporter) User guidance: This section should be completed only when the age is not provided more specifically. Conformance: Optional Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.9 Value allowed: 0=Foetus, 1=Neonate (Preterm and Term newborns), 2=Infant, 3=Child, 4=Adolescent, 5=Adult, and 6=Elderly
Patient Age Unit	MED_Patient_Age_Unit__c	Picklist	E2B (R3): D.2.2bAge at Time of Onset of Reaction / Event (unit) User guidance: When providing the age in decades, please note that, for example, the 7th decade refers to a person in their 60's Conformance: Optional, but required if D.2.2a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: UCUM codes for Year, Month, Week, Day, and Hour: {Decade}
Patient Birthdate	MED_Patient_Birthdate__c	Date	E2B (R3): D.2.1 Date of Birth User guidance: A full precision date should be used (i.e., day, month, year). If the full date of birth is unknown, an approximate age can be used. Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK
Patient Gender	MED_Patient_Gender__c	Picklist	E2B (R3): D.5 Sex Conformance: Optional Data type: 3N OID: None Value allowed: Numeric
Patient Gestation Period	MED_Patient_Gestation_Period__c	Number(3, 0)	E2B (R3): Gestation Period When Reaction / Event Was Observed in the Foetus (number) User guidance: Gestation period when reaction or event was observed in the fetus. Conformance: Optional, but required if D.2.2.1b is populated. Data type: 3N OID: None Value allowed: Numeric
Patient Gestation Period Unit	MED_Patient_Gestation_Period_Unit__c	Picklist	E2B (R3): D.2.2.1b Gestation Period When Reaction/Event Was Observed in the Foetus (unit) User guidance: Gestation period when reaction or event was observed in the fetus. Conformance: Optional, but required if D.2.2.1a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: UCUM codes for Month, Week, and Day:{Trimester}
Patient Height (cm)	MED_Patient_Height__c	Number(3, 0)	E2B (R3): D.4 Height (cm) User guidance: This data element captures the reported height of the patient in centimetres at the time of the event/reaction. Conformance: Optional Data type: 3N OID: None Value allowed: Numeric
Patient Identification	MED_Patient_Identification__c	Text(10)	User guidance: The identification of the patient may be prohibited by certain national confidentiality laws or directives. The information should be provided when it is in conformance with the confidentiality requirements.
Patient Last Menstrual Period	MED_Patient_Last_Menstrual_Period__c	Date	E2B (R3): D.6 Last Menstrual Period Date User guidance: This data element captures the date of the last menstrual period of the patient when it is relevant. Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK
Patient Relevant Medical History	MED_Patient_Relevant_Medical_History__c	Long Text Area(10000)	E2B (R3): D.7.2 Text for Relevant Medical History and Concurrent Conditions (not including reaction / event) User guidance: Text for relevant medical history and concurrent conditions of patient (not including reaction/event). Conformance: Optional, but required if Section D.7.1 is null. Data Type: 10000AN OID: None Value Allowed: Free text nullFlavor: MSK, ASKU, NASK, UNK
Patient Weight (kg)	MED_Patient_Weight__c	Number(6, 0)	E2B (R3): D.3 Body Weight (kg) User guidance: The weight at the time of the event or reaction. Conformance: Optional Data Type: 6N OID: None Value Allowed: Numeric
Primary Country	MED_Country__c	Picklist	Country for the Adverse Event. Used for sharing. E2B Mapping: A.1.1, primarysourcecountry, 2A
QA Summary	MED_QA_Summary__c	Text Area(255)	Summary of the QA review of the Adverse Event record.
Reconciliation Number	MED_Reconciliation_Number__c	Text(25) (External ID)	Reconciliation number for the Patient Safety System.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - Adverse Event - Adverse Event - Closed
Related PQC	MED_Product_Quality_Complaint__c	Lookup(Product Quality Complaint)	Indicates that this Adverse Event has a corresponding Product Quality Complaint.
Related Request	MED_Request__c	Lookup(Request)	The related Request record used to create the Adverse Event.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the Adverse Event record was reopened.
Reported Cause of Death	MED_Reported_Cause_of_Death__c	Text(250)	E2B (R3): D.9.2.r.2 Reported Cause(s) of Death (free text) User guidance: MedDRA term should be used if applicable. Conformance: Optional, but required if D.9.2.r.1 is populated. Data type: 250AN OID: None Value allowed: Free text
Reporter's Comments	MED_Reporter_s_Comments__c	Long Text Area(20000)	E2B (R3): H.2 Reporter's Comments User Guidance: This data element captures the reporter's comments on the diagnosis, causality assessment or other issues considered relevant. Conformance: Optional Data type: 20000AN OID: None Value allowed: Free text
Results in Death	MED_Results_in_Death__c	Picklist	E2B (R3): Moved to E.i.3.2 (AE Reaction)
Results of Relevant Tests and Procedures	MED_Results_of_Relevant_Tests_Procedures__c	Long Text Area(2000)	E2B (R3): NA
Serious	MED_Serious__c	Picklist	E2B (R3): NA
SLA Flag	MED_SLA_Flag__c	Formula (Text)	Visual indicator for the service-level agreement (SLA) status of the Adverse Event.
Sponsor Study Number	MED_Sponsor_Study_Number__c	Text(50)	E2B (R3): C.5.3 Sponsor Study Number User guidance: This data element should be completed only if the sender is the study sponsor or has been informed of the study number by the sponsor. Conformance: Optional Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.3.5 Value allowed: Free text nullFlavor: ASKU, NASK
Status	MED_Status__c	Picklist	Status of the record. The record is locked when closed, and the record is locked and removed from reporting when cancelled.
Study Name	MED_Study_Name__c	Long Text Area(2000)	E2B (R3): C.5.2 Study Name User guidance: This data element should be populated with the study name as registered in the jurisdiction where the ICSR is reported. Conformance: Optional Data type: 2000AN OID: None Value allowed: Free text nullFlavor: ASKU, NASK
Study Type	MED_Study_Type__c	Picklist	E2B (R3): C.5.4 Study Type User guidance: This information should be provided if the 'Type of Report' has been populated with 'Report from study'. Conformance: Optional, but required if C.1.3=2 (Report from study). Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.8 Value Allowed: 1=Clinical trials, 2=Individual patient use(e.g. 'compassionate use' or 'named patient basis'), and 3=Other studies (e.g. pharmacoepidemiology, pharmacoeconomics, intensive monitoring)
Transfer Reason	MED_Transfer_Reason__c	Picklist	Reason the record was transferred or escalated.
Type of Report	MED_Type_of_Report__c	Picklist	E2B (R3): C.1.3 Type of Report User guidance: This data element captures the type of report independently of its source; a separate element for the designation of the source is covered in item C.4 and is not duplicated in this section. Conformance: Required Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.2 Value allowed: 1=Spontaneous report, 2=Report from study, 3=Other, and 4=Not available to sender (unknown)

AE Drug

An AE Drug record links a product to a parent Adverse Event record and stores information about the product, such as dosage and where the drug was obtained. AE Drug capture is based on the ICH E2B(R3) definition and contains section G.

The AE Drug object is on the detail side of a master-detail relationship with the Adverse Event object and has a one-to-many lookup relationship with the Product object and AE Reaction object.

AE Drug schema

Field label	API name	Data type	Description
Action taken with Drug	MED_Action_taken_with_Drug__c	Picklist	E2B (R3): G.k.8 Action(s) Taken with Drug User guidance: This data, taken together with the outcome of the reaction, provide the information concerning the challenge. The Not applicable value should be used in circumstances such as if the patient died or the treatment had been completed prior to the reaction or event. Conformance: Optional Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.15 Actions taken codes: - 1=Drug withdrawn - 2 = Dose reduced - 3 = Dose increased - 4 = Dose not changed - 0 = Unknown - 9 = Not applicable
Active Substance Names	MED_Active_Substance_Names__c	Text(100)	The International Nonproprietary Names (INN) for Pharmaceutical Substances or drug substance name or drug identification code should be provided if no name exists. For combination products, specify each active ingredient.
Additional Information on Drug	MED_Additional_Information_on_Drug__c	Long Text Area(2000)	E2B (R3): G.k.11 Additional Information on Drug (free text) User guidance: Use this field to specify any additional information pertinent to the case that is not covered by other fields. You can also use this field to provide additional information concerning the indication for the drug. Conformance: Optional Data type: 2000AN OID: None Value allowed: Free text
Adverse Event	MED_Adverse_Event__c	Master-Detail(Adverse Event)	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or open (false). This field is used to trigger a change in the Record Type.
AE Drug Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
AE Reaction	MED_AE_Reaction_c	Lookup(AE Reaction)	Lookup relationship to the AE Reaction (MED_AE_Drug_Information__c) record.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
Authorization/Application Number	MED_Authorization_Application_Number__c	Text(35)	E2B (R3): G.k.3.1 Authorization / Application Number User guidance: If relevant and known, the name of the holder should be provided with the authorization number in the country where the drug was obtained when the case report is sent to that country. This field applies to both applications and authorizations. Conformance: Optional Data type: 35 AN OID: 2.16.840.1.113883.3.989.2.1.3.4 Value allowed: Free text
Batch/Lot Number	MED_Batch_Lot_Number__c	Text(35)	E2B (R3): G.k.4.r.7 Batch / Lot Number User guidance: This field is particularly important for vaccines and biologicals and allows for multiple batch or lot numbers, each separated by a delimiter defined by the transmission standard chosen. The most specific information available should be provided. Conformance: Optional Data type: 35AN OID: None Value allowed: Free text
Characterization of Drug Role	MED_Characterization_of_Drug_Role__c	Picklist	E2B (R3): G.k.1 Characterization of Drug Role User guidance: Characterization of the drug as provided by primary reporter. All spontaneous reports should have at least one suspect drug. If the reporter indicates a suspected interaction, interacting should be selected. All interacting drugs are considered suspect. Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.13 Value allowed: - 1 = Suspect - 2 = Concomitant - 3 = Interacting - 4 = Drug Not Administered
Country	MED_Country__c	Formula (Text)	Country associated with the parent Adverse Event record. This field is used by the product lookup.
Country Drug Obtained	MED_Country_Drug_Obtained__c	Picklist	E2B (R3): G.k.2.4 Identification of the Country Where the Drug Was Obtained User guidance: Country where the medicinal was obtained. Conformance: Optional Data type: 2A OID: 1.0.3166.1.2.2 Value allowed: ISO 3166-1 alpha-2, EU
Country of Authorization/Application	MED_Country_of_Authorization_Application__c	Picklist	E2B (R3): G.k.3.2 Country of Authorization / Application Conformance: Optional, but required if G.k.3.1 is provided. Data type: 2A OID: 1.0.3166.1.2.2 Value allowed: ISO 3166-1 alpha-2, EU
Cumulative Dose to First Reaction (Num)	MED_Cumulative_Dose_First_Reaction_Num__c	Number(10, 0)	E2B (R3): G.k.5a Cumulative Dose to First Reaction (number) User guidance: The total dose administered until the first sign, symptom, or reaction. Conformance: Optional, but required if G.k.5b is populated. Data type: 10N OID: None Value allowed: Numeric
Cumulative Dose to First Reaction (Unit)	MED_Cumulative_Dose_First_Reaction_Unit__c	Picklist	E2B (R3): G.k.5b Cumulative Dose to First Reaction (unit) User guidance: The total dose administered until the first sign, symptom, or reaction. Conformance: Optional, but required if G.k.5a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.25 Value allowed: Constrained UCUM codes: {DF}
Date of Last Administration	MED_Date_of_Last_Administration__c	Date	E2B (R3): G.k.4.r.5 Date and Time of Last Administration User guidance: For ongoing drug administration after the onset of the reaction or event, this item should be blank and Actions taken with drug should be used. Conformance: Optional Data type: Date / Time OID: None Value allowed: nullFlavor: MSK, ASKU, NASK
Did Reaction Recur on Readministration?	MED_Reaction_Recur_on_Readministration__c	Picklist	E2B (R3): G.k.9.i.4 Did Reaction Recur on Re-administration? User guidance: Unknown indicates that a rechallenge was done, but it is unknown if the event recurred. This segment should not be completed if it is unknown whether a rechallenge was done. Conformance: Optional Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.16 Value allowed: - 1 = yes -- yes (rechallenge was done, reaction recurred) - 2 = yes -- no (rechallenge was done, reaction did not recur) - 3 = yes -- unk (rechallenge was done, outcome unknown) - 4 = no -- n/a (no rechallenge was done, recurrence is not applicable)
Dosage Form	MED_Dosage_Form__c	Text(60)	E2B (R3): G.k.4.r.9.1 Pharmaceutical Dose Form (free text) User guidance: e.g., tablets, capsules, syrup Conformance: Optional Data type: 60 AN OID: None Value allowed:Free text nullFlavor: ASKU, NASK, UNK
Dosage Interval	MED_Dosage_Interval__c	Number(4, 0)	E2B (R3): G.k.4.r.2 Number of Units in the Interval User guidance: For example, if the dosage is5 mg 2 times a day every other day for 30 days, the Dosage Interval is 2. Conformance: Optional Data type: 4N OID: None Value allowed: Numeric
Dosage Interval (Units)	MED_Dosage_Interval_Units__c	Picklist	E2B (R3): G.k.4.r.3 Definition of the Time Interval Unit User guidance: For example, if the dosage is5 mg 2 times a day every other day for 30 days, the Dosage Interval (Units) is day. Conformance: Optional, but required if G.k.4.r.2 is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: Constrained UCUM codes:{cyclical}, {asnecessary},{total}
Dosage Text	MED_Dosage_Text__c	Long Text Area(2000)	E2B (R3): G.k.4.r.8 Dosage Text User guidance: This item should be used in cases where provision of structured dosage information is impossible. Conformance: Optional Data type: 2000AN OID: None Value allowed: Free text
Dose (Number)	MED_Dose_number__c	Number(6, 2)	E2B (R3): G.k.4.r.1a Dose (number) User guidance: For example, if the dosage is 5 mg 2 times a day every other day for 30 days, the Dose (Number) is 5. Conformance: Optional Data type: 8N OID: None Value allowed: Numeric
Dose (Units)	MED_Dose_Units__c	Picklist	E2B (R3): G.k.4.r.1b Dose (unit) User guidance: For example, if the dosage is 5 mg 2 times a day every other day for 30 days, the Dose (Units) is mg. Conformance: Optional, but required if G.k.4.r.1a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.25 Value allowed: Constrained UCUM codes: {DF}
Duration of Drug Administration	MED_Duration_of_Drug_Administration__c	Number(5, 0)	E2B (R3): G.k.4.r.6a Duration of Drug Administration (number) User guidance: This item should be used if exact dates of drug administration are unavailable at the time of the report, but there is information concerning the duration of drug administration. The information requested is the overall duration of drug administration. Conformance: Optional, but required if G.k.4.r.6b is populated. Data type: 5N OID: None Value allowed: Numeric
Duration of Drug Administration (Unit)	MED_Duration_of_Drug_Administration_Unit__c	Picklist	E2B (R3): G.k.4.r.6b Duration of Drug Administration (unit) User guidance: This item should be used if exact dates of drug administration are unavailable at the time of the report, but there is information concerning the duration of drug administration. The information requested is the overall duration of drug administration. Conformance: Optional, but required if G.k.4.r.6a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: Constrained UCUM codes
E2B Product	MED_E2B_Product__c	Formula (Text)	Returns the Product name if Product is selected and returns the Product (Other) name otherwise.
Gestation Period (Unit)	MED_Gestation_Period_Unit__c	Picklist	E2B (R3): G.k.6b Gestation Period at Time of Exposure (unit) User guidance: Use the gestational age at the time of the earliest exposure. Gestation period at time of exposure should be expressed by providing both a number and designation of units of days, weeks, months, or trimester. Conformance: Optional, but required if G.k.6a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: UCUM codes for Month, Week, and Day:{Trimester}
Gestation Period at Time of Exposure	MED_Gestation_Period_at_Time_of_Exposure__c	Number(3, 0)	E2B (R3): G.k.6a Gestation Period at Time of Exposure (number) User guidance: Use the gestational age at the time of the earliest exposure. Gestation period at time of exposure should be expressed by providing both a number and designation of units of days, weeks, months, or trimester. Conformance: Optional, but required if G.k.6b is populated. Data type: 3N OID: None Value allowed: Numeric
If Yes, which Reactions Recurred?	MED_If_Yes_which_Reactions_Recurred__c	Text(250)	E2B (R3): NA User guidance: Unknown indicates that a rechallenge was done, but it is unknown if the event recurred. This segment should not be completed if it is unknown whether a rechallenge was done.
Indication for Use in the Case	MED_Indication_for_use_in_the_case__c	Text(250)	E2B (R3): G.k.7.r.1 Indication as Reported by the Primary Source User guidance: The indication as reported. For multiple indications for the same drug, repeat the entire drug entry, specifying the same drug for each indication. Conformance: Optional Data type: 250AN OID: None Value allowed:Free text nullFlavor: ASKU, NASK, UNK
MedDRA Version for Indication	MED_MedDRA_Version_for_Indication__c	Text(4)	E2B (R3): G.k.7.r.2a MedDRA Version for Indication User guidance: The indication as reported. For multiple indications for the same drug, repeat the entire drug entry, specifying the same drug for each indication. MedDRA terms should be provided as code. Conformance: Optional, but required if G.k.7.r.2b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot) :::: warning ::: title ::: This field has been deprecated as of Fall '25 and is only available in V16 and below. ::::
MedDRA Version for Reactions Recurred	MED_MedDRA_for_Reactions_Recurred__c	Text(8)	E2B (R3): NA User guidance: Use MedDRA terms
Name of Holder/Applicant	MED_Name_of_Holder_Applicant__c	Text(60)	E2B (R3): G.k.3.3 Name of Holder / Applicant Conformance: Optional Data type: 60AN OID: None Value allowed: Free text
Number of Separate Dosages	MED_Number_of_Separate_Dosages__c	Number(3, 0)	E2B (R3): NA
Parent Route of Administration	MED_Parent_Route_of_Administration__c	Picklist	E2B (R3): G.k.4.r.11.1 Route of Administration (free text) User guidance: This section should be used in a parent-child or fetus report and linked to parent reports to indicate the route of administration to the parent. Conformance: Optional Data type: 60 AN OID: None Value allowed: Free text nullFlavor: ASKU, NASK, UNK
Product	MED_Product__c	Lookup(Product)	E2B (R3): G.k.2.2 Medicinal Product Name as Reported by the Primary Source User guidance: The name should be that used by the reporter. It is recognized that a single product may have different proprietary names in different countries, even when produced by a single manufacturer. Conformance: Required Data type: 250AN OID: None Value allowed: Free text
Product (Other)	MED_Other_Product__c	Text(255)	The name of a third-party product.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Drug - AE Drug - Closed
Related Record Label	MED_Related_Record_Label__c	Formula (Text)	The concatenation of the product information and the drug role characterization.
Route of Administration	MED_Route_of_Administration__c	Picklist	E2B (R3): G.k.4.r.10.1 Route of Administration (free text) User guidance: For a parent-child or parent-fetus report, this indicates the route of administration of a drug given to the child or fetus. This is usually an indirect exposure, such as transmammary, but can include more usual routes of administration. Conformance: Optional Data type: 60 AN OID: None Value allowed: Free text nullFlavor: ASKU, NASK, UNK
Route of Administration	MED_Route_of_Administration_Text__c	Text(60)	E2B (R3): G.k.4.r.10.1 Route of Administration (free text)User Guidance: This data element captures a free text description of the route of administration when the Route of Administration TermID (G.k.4.r.10.2b) is not available. An appropriate nullFlavor can be used if the source has not provided or does not know the information. Conformance: Optional Data Type: 60 AN OID: None Value Allowed: Free text nullFlavor: ASKU, NASK, UNK
Start of Drug	MED_Start_of_Drug__c	Date	E2B (R3): G.k.4.r.4 Date and Time of Start of Drug User guidance: First date of use. Conformance: Optional Data type: Date / Time OID: None Value allowed: nullFlavor: MSK, ASKU, NASK
Time Between Last Dose and Reaction	MED_Time_Between_Last_Dose_and_Reaction__c	Number(5, 0)	E2B (R3): G.k.9.i.3.2a Time Interval between Last Dose of Drug and Start of Reaction / Event (number) User guidance: The major uses of intervals are to cover circumstances where both the dates are known but the interval is very short (e.g., minutes, such as in anaphylaxis) and when only imprecise dates are known but more information concerning the interval is known. Conformance: Optional, but required if G.k.9.i.3.2b is populated. Data type: 5N OID: None Value allowed: Numeric
Time Between Last Dose/Reaction (Unit)	MED_Time_Between_Last_Dose_Reaction_Unit__c	Picklist	E2B (R3): G.k.9.i.3.2b Time Interval between Last Dose of Drug and Start of Reaction / Event (unit) User guidance: The major uses of intervals are to cover circumstances where both the dates are known but the interval is very short (e.g., minutes, such as in anaphylaxis) and when only imprecise dates are known but more information concerning the interval is known. Conformance: Optional, but required if G.k.9.i.3.2a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: Constrained UCUM codes
Time Between Start and Reaction (Unit)	MED_Time_Between_Start_and_Reaction_Unit__c	Picklist	E2B (R3): G.k.9.i.3.1b Time Interval between Beginning of Drug Administration and Start of Reaction / Event (unit) User guidance: The major uses of intervals are to cover circumstances where both the dates are known but the interval is very short (e.g., minutes, such as in anaphylaxis) and when only imprecise dates are known but more information concerning the interval is known. Conformance: Optional, but required if G.k.9.i.3.1a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: Constrained UCUM codes
Time Between Start of Drug and Reaction	MED_Time_From_Start_of_Drug_to_Reaction__c	Number(5, 0)	E2B (R3): G.k.9.i.3.1a Time Interval between Beginning of Drug Administration and Start of Reaction / Event (number) User guidance: The major uses of intervals are to cover circumstances where both the dates are known but the interval is very short (e.g., minutes, such as in anaphylaxis) and when only imprecise dates are known but more information concerning the interval is known. Conformance: Optional, but required if G.k.9.i.3.1b is populated. Data type: 5N OID: None Value allowed: Numeric

AE Drug History

An AE Drug History record stores relevant drug history information about the patient who experienced the adverse reaction or the patient's parent who did not experience the adverse reaction. AE Drug History capture is based on the ICH E2B (R3) definition and contains sections D.8 and D.10.8.

The AE Drug History object is on the detail side of a master-detail relationship with the Adverse Event object.

AE Drug History schema

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Master-Detail	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or not closed (false). This field is used to trigger a change in the Record Type.
AE Drug History Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
End Date	MED_End_Date__c	Date	E2B (R3): D.8.r.5 End Date E2B (R3): D.10.8.r.5 End Date Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
Indication	MED_Indication__c	Text(8)	E2B (R3): D.8.r.6b Indication (MedDRA code) E2B (R3): D.10.8.r.6b Indication (MedDRA code) User guidance: If applicable, MedDRA terms should be used in the indication. Conformance: Optional, but required if D.10.8.r.6a is populated. Data type: 8NOID: 2.16.840.1.113883.6.163 Value allowed: Numeric
MedDRA Version for Indication	MED_MedDRA_Version_for_Indication__c	Text(4)	E2B (R3): D.8.r.6a MedDRA Version for Indication E2B (R3): D.10.8.r.6a MedDRA Version for Indication User guidance: If applicable, MedDRA terms should be used in the indication. Conformance: Optional, but required if D.10.8.r.6b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot) :::: warning ::: title ::: This field has been deprecated as of Fall '25 and is only available in V16 and below. ::::
MedDRA Version for Reaction	MED_MedDRA_Version_for_Reaction__c	Text(4)	E2B (R3): D.8.r.7a MedDRA Version for Reaction E2B (R3): D.10.8.r.7a MedDRA Version for Reaction User guidance: If applicable, MedDRA terms should be used in the reaction. Conformance: Optional, but required if D.10.8.r.7b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot) :::: warning ::: title ::: This field has been deprecated as of Fall '25 and is only available in V16 and below. ::::
Name of Drug as Reported	MED_Name_of_Drug_as_Reported__c	Text(250)	E2B (R3): D.8.r.1 Name of Drug as Reported E2B (R3): D.10.8.r.1 Name of Drug as Reported User guidance: This segment concerns drugs previously taken but not those taken concomitantly or drugs that may have potentially been involved in the current reaction or event. Information concerning concomitant and other suspect drugs should be captured separately. Conformance: Optional Data type: 250AN OID: None Value allowed: Free text
Parent History?	MED_Parent_History__c	Checkbox	Indicates if the history is for the parent (true) or the patient (false). This should be used in the case of a parent-child or parent-fetus report where the parent had no reaction or event.
Reactions	MED_Reactions__c	Text(8)	E2B (R3): D.8.r.7b Reactions (MedDRA code) E2B (R3): D.10.8.r.7b Reactions (MedDRA code) User guidance: If applicable, MedDRA terms should be used in the reaction. Conformance: Optional, but required if D.10.8.r.7a is populated. Data type: 8N OID: 2.16.840.1.113883.6.163 Value allowed: Numeric
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Drug History - AE Drug History - Closed
Start Date	MED_Start_Date__c	Date	E2B (R3): D.8.r.4 Start Date E2B (R3): D.10.8.r.4 Start Date Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK

AE Medical History

An AE Medical History record stores relevant medical history information about the patient who experienced the adverse reaction or the patient's parent who did not experience the adverse reaction. AE Medical History capture is based on the ICH E2B (R3) definition and contains sections D.7.1 and D.10.7.1.

The AE Medical History object is on the detail side of a master-detail relationship with the Adverse Event object.

AE Medical History schema

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Master-Detail(Adverse Event)	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or not closed (false). This field is used to trigger a change in the Record Type.
AE Medical History Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
Comments	MED_Comments__c	Long Text Area(2000)	E2B (R3): D.7.1.r.5 Comments E2B (R3): D.10.7.1.r.5 Comments User guidance: This data element provides additional relevant information about the 'medical condition' that could not be captured otherwise in a structured data element. Conformance: Optional Data type: 2000AN OID: None Value allowed: Free text
Continuing?	MED_Continuing__c	Picklist	E2B (R3): D.7.1.r.3 Continuing E2B (R3): D.10.7.1.r.3 Continuing User guidance: Indicates if the 'medical condition' is known to be still present at the time of this report. Conformance: Optional Data type: Boolean OID: None Value allowed: falsetrue nullFlavor: MSK, ASKU, NASK
Disease/Surgical Procedure/Etc.	MED_Disease_Surgical_Procedure_Etc__c	Text(8)	E2B (R3): D.7.1.r.1b Medical History (disease / surgical procedure / etc.) (MedDRA code) E2B (R3): D.10.7.1.r.1b Medical History (disease / surgical procedure / etc.) (MedDRA code) User guidance: Medical judgment should be exercised in completing this section. Information pertinent to understanding the case is desired, such as diseases, conditions (e.g. pregnancy), surgical procedures, and psychological trauma. Conformance: Optional, but required if D.10.7.1.r.1a is populated. Data type: 8N OID: 2.16.840.1.113883.6.163 Value allowed: Numeric
End Date	MED_End_Date__c	Date	E2B (R3): D.7.1.r.4 End Date E2B (R3): D.10.7.1.r.4 End Date User guidance: If precise dates are unknown and a text description aids in understanding the medical history or if concise additional information is helpful in showing the relevance of the past medical history, this information can be included in the Comments field. Conformance: Optional Data Type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
Family History	MED_Family_History__c	Checkbox	E2B (R3): D.7.1.r.6 Family History User guidance: Set to true when the medical information provided is also present in another family member (e.g. hereditary diseases). However, this data element is not used when the same medical concept is already provided in the medical history of the parent. Conformance: Optional Data Type: Boolean OID: None Value Allowed: True
MedDRA Version for Medical History	MED_MedDRA_Version_for_Medical_History__c	Text(4)	E2B (R3): D.7.1.r.1a MedDRA Version for Medical History E2B (R3): D.10.7.1.r.1a MedDRA Version for Medical History User guidance: If applicable, MedDRA terms should be used in the main description for disease or surgical procedures. Conformance: Optional, but required if D.7.1.r.1b is populated. Data Type: 4AN OID: None Value Allowed: Numeric and '. '(dot) :::: warning ::: title ::: This field has been deprecated as of Fall '25 and is only available in V16 and below. ::::
Parent History?	MED_Parent_History__c	Checkbox	Indicates if the history is for the parent (true) or the patient (false). This should be used in the case of a parent-child or parent-fetus report where the parent had no reaction or event.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Medical History - AE Medical History - Closed
Start Date	MED_Start_Date__c	Date	E2B (R3): D.7.1.r.2 Start Date E2B (R3): D.10.7.1.r.2 Start Date User guidance: If precise dates are unknown and a text description aids in understanding the medical history or if concise additional information is helpful in showing the relevance of the past medical history, this information can be included in the Comments field. Conformance: Optional Data Type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK

AE Primary Source

The AE Primary Source object stores information about the primary sources related to Adverse Events. When the Auto Stamp Primary Source Global Setting is enabled and an Adverse Event record is created, AE Primary Source records are automatically created and populated with information from the Requester and Referred By accounts listed on the parent Interaction record. More specifically, information about the Requester listed on an Interaction maps to an automatically generated AE Primary Source record associated with the Adverse Event. Likewise, Referred By fields on the Interaction map to a second automatically generated AE Primary Source record. For more information about Adverse Event primary source population, visit Adverse Event primary sources.

The AE Primary Source object is on the detail side of a master-detail relationship with the Adverse Event object. AE Primary Source capture is based on the ICH E2B(R3) definition and section C.2.r.

AE Primary Source schema

Field label	API name	Data type	Description
Address Street	MED_Address_Street__c	Text(100)	E2B (R3): C.2.r.2.3 Reporter's Street User guidance: This data element captures the reporter's street name. Conformance: Optional Data type: 100AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Adverse Event	MED_Adverse_Event__c	Master-Detail(Adverse Event)	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or not closed (false). This field is used to trigger a change in the Record Type.
AE Reporter Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
City	MED_City__c	Text(35)	E2B (R3): C.2.r.2.4 Reporter's City User guidance: This data element captures the reporter's city name. Conformance: Optional Data type: 35ANOID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Consent to Contact?	MED_Consent_to_Contact__c	Picklist	Captures whether the reporters has consented to contact in the positive, negative or has not specified.
Country	MED_Country__c	Picklist	E2B (R3): C.2.r.3 Reporter's Country Code User guidance: This data element captures the two letter ISO 3166 Part 1 code (ISO3166-1 alpha-2) to represent the name of the reporter's country. In exceptional cases where the country of the primary source is not available to the sender, the country where the reaction/event occurred (E.i.9) must be provided. Conformance: Optional, but required if C.2.r.5 = 1. Data type: 2A OID: 1.0.3166.1.2.2 Value allowed: ISO 3166-1 (alpha 2), EU nullFlavor: MSK, ASKU, NASK, UNK
Department	MED_Department__c	Text(60)	E2B (R3): C.2.r.2.2 Reporter's Department User guidance: This data element captures the reporter's department name. Conformance: Optional Data type: 60AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
First Name	MED_First_Name__c	Text(60)	E2B (R3): C.2.r.1.2 Reporter's Given Name User guidance: This data element captures the reporter's given name. Conformance: Optional Data type: 60AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Last Name	MED_Last_Name__c	Text(60)	E2B (R3): C.2.r.1.4 Reporter's Family Name User guidance This data element captures the reporter's family name. Conformance: Optional Data type: 60AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Literature References	MED_Literature_References__c	Long Text Area(500)	E2B (R3): C.4.4.1 Literature Reference(s) Conformance: Optional Data type: 500AN OID: None Value allowed:Free text nullFlavor: ASKU, NASK
Middle Name	MED_Middle_Name__c	Text(60)	E2B (R3): C.2.r.1.3 Reporter's Middle Name User guidance: This data element captures the reporter's middle name. Conformance: Optional Data type: 60AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK Entity name: given (same as first name, the entity name is repeated and the second one is middle)
Organization	MED_Organization__c	Text(60)	E2B (R3): C.2.r.2.1 Reporter's Organisation User guidance: This data element captures the reporter's organization's name. Conformance: Optional Data type: 60AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK Entity name: name
Phone	MED_Phone__c	Phone	E2B (R3): C.2.r.2.7 Reporter's Telephone User guidance: This data element captures the reporter's telephone number, including the country code and any extension. Numbers should be entered in a fashion that allows for international dialing (e.g. +cc) and not include any domestic trunk prefix. The phone number should not include domestic international dialing prefixes (also known as country exit codes, such as 00 in Europe, 011 in US, 010 in Japan). Begin with the International Telecommunications Union plus sign (+) notation followed by the country code appropriate for the location of the telephone number. Additional visual separators for human readability are not required. If used these characters should be limited to dashes '-' or dots '.'. Conformance: Optional Data type: 33AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Postal Code	MED_Postal_Code__c	Text(15)	E2B (R3): C.2.r.2.6 Reporter's Postcode User guidance: This data element captures the reporter's postcode. Conformance: Optional Data type: 15AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Prescriber?	MED_Prescriber__c	Picklist	Indicates if the source is a prescriber, not, or unspecified if blank.
Primary Source for Regulatory Purposes	MED_Primary_Source_Regulatory_Purposes__c	Picklist	E2B (R3): C.2.r.5 Primary Source for Regulatory Purposes User guidance: This data element identifies which primary source to use for regulatory purposes and in case of multiple sources, it identifies the source of the World Wide Case Unique Identification number; this source should identify where the case occurred. The data element determines where the case will be reported as a 'domestic' case and where the case will be reported as a 'foreign' case. Conformance Required for one and only one instance of this element. Data type: 1N OID: None Value allowed: 1=primary
Qualification	MED_Qualification__c	Picklist	E2B (R3): C.2.r.4 Qualification User guidance: This data element captures the reporter qualification. Conformance: Optional, but required if C.2.r.5 = 1. Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.6 Value allowed: - 1=Physician - 2=Pharmacist - 3=Other health professional - 4=Lawyer - 5=Consumer or other non health professional nullFlavor: UNK
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Reporter - AE Reporter - Closed
Related Record Label	MED_Related_Record_Label__c	Formula (Text)	The concatenation of the primary source's first name, last name, and regulatory purposes.
Sponsor Study Number	MED_Sponsor_Study_Number__c	Text(35)	E2B (R3): Moved to C.5.3 (AE Object)
State	MED_State__c	Text(40)	E2B (R3): C.2.r.2.5 Reporter's State or Province User guidance: This data element captures the reporter's State or Province. Conformance: Optional Data type: 40AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK
Study Name	MED_Study_Name__c	Text(100)	E2B (R3): Moved to C.5.2 (AE Object)
Study Type	MED_Study_Type__c	Picklist	E2B (R3): Moved to C.5.4 (AE Object)
Title	MED_Title__c	Text(50)	E2B (R3): C.2.r.1.1 Reporter's Title User guidance: This data element captures the reporter's title. Conformance: Optional Data type: 50AN OID: None Value allowed: Free text nullFlavor: MSK, ASKU, NASK, UNK Entity name: prefix

AE Reaction

An AE Reaction record stores reaction information related to the parent Adverse Event record. AE Reaction capture is based on the ICH E2B (R3) definition and section E.

The AE Reaction object is on the detail side of a master-detail relationship with the Adverse Event object.

AE Reaction schema

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Master-Detail(Adverse Event)	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or open (false). This field is used to trigger a change in the Record Type.
AE Reaction Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
Caused/Prolonged Hospitalization	MED_Caused_Prolonged_Hospitalization__c	Checkbox	E2B (R3): E.i.3.2c Caused/Prolonged Hospitalization User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
Confirmed by HCP	MED_Confirmed_by_HCP__c	Picklist	E2B (R3): E.i.8 Medical Confirmation by Healthcare Professional User guidance: If an event is reported by a non-healthcare professional (e.g., lawyers, consumers), this data element indicates whether the occurrence of the event was subsequently confirmed by a healthcare professional. Conformance: Optional Data type: Boolean OID: None Value allowed: false, true
Congenital Anomaly/Birth Defect	MED_Congenital_Anomaly_Birth_Defect__c	Checkbox	E2B (R3): E.i.3.2e Congenital Anomaly/Birth Defect User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
Country Where Reaction/Event Occurred	MED_Country_Where_Reaction_Occurred__c	Picklist	E2B (R3): Identification of the Country Where the Reaction / Event Occurred User guidance: This data element captures the country where the reaction occurred. Conformance: Optional Data type: 2A OID: 1.0.3166.1.2.2 Value allowed: ISO 3166-1 alpha-2, EU
Disabling/Incapacitating	MED_Disabling_Incapacitating__c	Checkbox	E2B (R3): E.i.3.2d Disabling/Incapacitating User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
Duration of Reaction/Event	MED_Duration_of_Reaction_Event__c	Number(5, 0)	E2B (R3): E.i.6a Duration of Reaction / Event (number) User guidance: This section will usually be computed from the start/end date and time of the reaction/event. However, there might be situations in which the precise duration of the reaction/event and date can be useful. Conformance: Optional, but required if E.i.6b is populated. Data type: 5N OID: None Value allowed: Numeric
Duration Unit	MED_Duration_Unit__c	Picklist	E2B (R3): E.i.6b Duration of Reaction / Event (unit) User guidance: This data element captures the unit of time for the value recorded. Conformance: Optional, but required if E.i.6a is populated. Data type: 50AN OID: 2.16.840.1.113883.3.989.2.1.1.26 Value allowed: Constrained UCUM codes
End Date of Reaction/Event	MED_End_Date_of_Reaction_Event__c	Date	E2B (R3): E.i.5 Date of End of Reaction / Event User guidance: This data element captures the date the reaction is reported as resolved/recovered or resolved/recovered with sequelae. When multiple terms are reported and the reporter does not provide a specific stop date for each, populated with the end date of the last. Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
First Use Time Interval Unit	MED_Time_Start_of_Drug_Reaction_Event__c	Picklist	E2B (R3): Moved to G.k.4r (AE Drug)
Last Use Time Interval Unit	MED_Last_Use_Time_Interval_Unit__c	Picklist	E2B (R3): Moved to G.k.4r (AE Drug)
Life Threatening	MED_Life_Threatening__c	Checkbox	E2B (R3): E.i.3.2b Life Threatening User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
MedDRA Version (LLT)	MED_MedDRA_Version_LLT__c	Text(4)	E2B (R3): E.i.2.1a MedDRA Version for Reaction / Event User guidance: This data element provides the MedDRA version. Conformance: Required Data type: 4AN OID: None Value allowed: Numeric and '. '(dot)
MedDRA Version (PT)	MED_MedDRA_Version_PT__c	Text(8)	E2B (R3): NA
Other Medically Important Condition	MED_Other_Medically_Important_Condition__c	Checkbox	E2B (R3): E.i.3.2f Other Medically Important Condition User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
Outcome at Last Observation	MED_Outcome_at_Last_Observation__c	Picklist	E2B (R3): E.i.7 Outcome of Reaction / Event at the Time of Last Observation User guidance: In case of irreversible congenital anomalies, the choice not recovered/not resolved/ongoing should be used. For other irreversible medical conditions, recovered/resolved with sequelae should be used. Fatal should be used when death is possibly related. Conformance: Required Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.11 Value allowed: - 1 = recovered/resolved - 2 = recovering/resolving - 3 = not recovered/not resolved/ongoing - 4 = recovered/resolved with sequelae - 5 = fatal - 0 = unknown
Reaction/Event as Reported (English)	MED_Reaction_Event_as_Reported_en__c	Text(250)	E2B (R3): E.i.1.2 Reaction / Event as Reported by the Primary Source for Translation User guidance: Captures the original reporter's words and/or short phrases used to describe the reaction/event should be provided in an English translation for international transmission. Conformance: Optional Data type: 250AN OID: None Value allowed: Free text
Reaction/Event as Reported (Native)	MED_Reaction_Event_as_Reported_Native__c	Text(250)	E2B (R3): E.i.1.1a Reaction / Event as Reported by the Primary Source in Native Language User guidance: This data element captures the original reporter's words and/or short phrases used to describe the reaction/event. Text should be provided in the native language it was received, when it is received in a language other than English. Conformance: Optional Data type: 250AN OID: None Value allowed: Free text
Reaction/Event as Source Langauge	MED_Reaction_Event_as_Source_Langauge__c	Picklist	E2B (R3): E.i.1.1b Reaction / Event as Reported by the Primary Source Language User guidance: Provide the language used to describe the reaction/event. Conformance: Optional, but required if E.i.1.1a is populated. Data type: 3A OID: 2.16.840.1.113883.6.100 Value allowed: ISO 639-2/RA, alpha-3
Reaction/Event MedDRA Term (LLT)	MED_Reaction_Event_MedDRA_Term_LLT__c	Text(8)	E2B (R3): E.i.2.1b Reaction / Event (MedDRA code) User guidance: This data element captures the MedDRA LLT most closely corresponding to the reaction/event as reported by the primary source. In the exceptional circumstance when a MedDRA term cannot be found, the sender should use clinical judgment to complete this item. Conformance: Required Data type: 8N OID: 2.16.840.1.113883.6.163 Value allowed: Numeric
Reaction/Event MedDRA Term (PT)	MED_Reaction_Event_MedDRA_Term_PT__c	Text(250)	E2B (R3): NA
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Reaction - AE Reaction - Closed
Results in Death	MED_Results_in_Death__c	Checkbox	E2B (R3): E.i.3.2a Results in Death User guidance: The seriousness criteria of the reaction/event should be based on the definitions provided in the ICH E2A and E2D guidelines. More than one seriousness criteria can be chosen. If the event is not serious, all of these data elements should be left blank. Conformance: Required Data type: Boolean OID: None Value allowed: true nullFlavor: NI
Start Date of Reaction/Event	MED_Start_Date_of_Reaction_Event__c	Date	E2B (R3): E.i.4 Date of Start of Reaction / Event User guidance: This data element captures the date of the start of the reaction/event. When multiple terms are reported and the reporter does not provide a specific onset date for each reaction/event, it should be populated with the start date of the first symptom. Conformance: Optional Data type: Date / Time OID: None nullFlavor: MSK, ASKU, NASK
Term Highlighted by Reporter	MED_Term_Highlighted_by_Reporter__c	Picklist	E2B (R3): E.i.3.1 Term Highlighted by the Reporter User guidance: A highlighted term is a reaction/event that the primary source indicated was a major concern or reason for reporting the case. If the information is not explicitly provided by the initial reporter the term should not be considered a highlighted term. Conformance: Optional Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.10 Value allowed: - 1 = Yes, highlighted by the reporter, NOT serious - 2 = No, not highlighted by the reporter, NOT serious - 3 = Yes, highlighted by the reporter, SERIOUS - 4 = No, not highlighted by the reporter, SERIOUS
Time Between First Use & Reaction/Event	MED_Time_Btwn_First_Use_Reaction_Event__c	Number(5, 0)	E2B (R3): Moved to G.k.4r (AE Drug)
Time Between Last Use & Reaction/Event	MED_Time_Between_Last_Use_Reaction_Event__c	Number(5, 0)	E2B (R3): Moved to G.k.4r (AE Drug)

AE Test Result

An AE Test Result record stores results from a test or procedure that was performed to investigate an adverse reaction or event. AE Test Result capture is based on the ICH E2B (R3) definition and contains section F.

The AE Test Result object is on the detail side of a master-detail relationship with the Adverse Event object.

AE Test Result schema

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Master-Detail(Adverse Event)	Lookup to the parent Adverse Event record.
AE Closed	MED_AE_Closed__c	Checkbox	Indicates whether the parent Adverse Event record is closed (true) or not closed (false). This field is used to trigger a change in the Record Type.
AE Results Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Anonymize	MED_Anonymize__c	Checkbox	Indicates whether the given record should be anonymized (true) or not (false).
Comments	MED_Comments__c	Long Text Area(2000)	E2B (R3): F.r.6 Comments User guidance: This data element captures any relevant comments made by the reporter about the test result. Conformance: Optional Data type: 2000AN OID: None Value allowed: Free text
MeDRA Code	MED_MeDRA_Code__c	Text(8)	E2B (R3): F.r.2.2b Test Name (MedDRA code) User guidance: This data element captures the MedDRA LLT code for the test name. Conformance: Optional, but required when F.r.1 is populated and F.r.2.1 is not populated. Data type: 8N OID: 2.16.840.1.113883.6.163 Value allowed: Numeric
MeDRA Version for Test Name	MED_MeDRA_Version_for_Test_Name__c	Text(4)	E2B (R3): F.r.2.2a MedDRA Version for Test Name User guidance: This data element provides the MedDRA version for F.r.2.2b. Conformance: Optional, but required when F.r.2.2b is populated. Data type: 4AN OID: None Value allowed: Numeric and '. '(dot) :::: warning ::: title ::: This field has been deprecated as of Fall '25 and is only available in V16 and below. ::::
More Information Available	MED_More_Information_Available__c	Picklist	E2B (R3): F.r.7 More Information Available User guidance: This data element indicates if more information is held by the sender about the test and test result. For example, true means that more documentation is available upon request, e.g. ECG strips, chest X-ray. False means that no more documentation is available from the sender. Conformance: Optional Data type: Boolean OID: None Value allowed: false, true
Normal High Range	MED_Normal_High_Range__c	Text(50)	E2B (R3): F.r.5 Normal High Value User guidance: This data element captures the 'highest' value in the normal range for the test. This value is usually published by the laboratory providing the test results. The same units as used in F.r.3.3 are implied. For best results, use only numeric values of the units set in the Unit field. Conformance: Optional Data Type: 50AN OID: None Value Allowed: Free text
Normal Low Range	MED_Normal_Low_Range__c	Text(50)	E2B (R3): F.r.4 Normal Low Value User guidance: This data element captures the 'lowest' value in the normal range for the test. This value is usually published by the laboratory providing the test results. The same units as used in F.r.3.3 are implied. For best results, use only numeric values of the units set in the Unit field. Conformance: Optional Data type: 50AN OID: None Value allowed: Free text
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - AE Test Result - AE Test Result - Closed
Result (Free Text)	MED_Result__c	Long Text Area(2000)	E2B (R3): F.r.3.4 Result Unstructured Data (free text) User guidance: This data element is used when 'results' and 'units' cannot be split, often because a UCUM code is not available for the test unit. For example, for the test 'protein excretion', the result could be recorded here as '125mg /24 hours'. Conformance: Optional, but required if F.r.2 is populated, and F.r.3 is not populated. Data type: 2000AN OID: None Value allowed: Free text
Test Date	MED_Test_Date__c	Date	E2B (R3): F.r.1 Test Date User Guidance: This data element captures the date of the test or procedure. Imprecise dates can be used. Conformance: Optional, but required if F.r.2 is populated. Data Type: Date / Time OID: None nullFlavor = UNK
Test Name	MED_Test_Name__c	Text(250)	E2B (R3): F.r.2.1 Test Name (free text) User guidance: This data element captures a free text description of the test when an appropriate MedDRA code is unavailable. Conformance: Optional, but required if F.r.1 is populated and F.r.2.2b is not populated. Data type: 250AN OID: None Value: Allowed Free text
Test Result Code	MED_Test_Result_Code__c	Picklist	E2B (R3): F.r.3.1 Test Result (code) User guidance: This data element allows a descriptive code to indicate the test result. Conformance: Optional, but required if F.r.2 is populated, and F.r.3.2 and F.r.3.4 is not populated. Data type: 1N OID: 2.16.840.1.113883.3.989.2.1.1.12 Value allowed: - 1=Positive - 2=Negative - 3=Borderline - 4=Inconclusive
Test Result Value	MED_Test_Result_Value__c	Number(18, 0)	E2B (R3): F.r.3.2 Test Result (value / qualifier) User guidance: This data element captures the value (amount) for the test result. A qualifier symbol can be added to the value when appropriate. The supported qualifiers are 'greater than', 'less than', 'greater than or equal to' and 'less than or equal to'. Conformance: Optional, but required if F.r.2 is populated, and F.r.3.1 and F.r.3.4 is not populated. Data type: 50N OID: None Value allowed: Numeric nullFlavor: NINF, PINF
Unit	MED_Unit__c	Text(50)	E2B (R3): F.r.3.3 Test Result (unit) User guidance: This data element captures the unit for the test value. When a UCUM code is not suitable, or results and units cannot be split, Results (free text) should be used. Conformance: Optional, but required if F.r.3.2 is populated Data type: 50AN OID: 2.16.840.1.113883.6.8 Value allowed: UCUM

Affiliation

The Affiliation object stores the hierarchical relationship between people and organizations.

Affiliation schema

Field label	API name	Data type	Description
Child Account	MED_Child_Account__c	Lookup(Account)	Child account of the affiliation.
Display Name	MED_Display_Name__c	Formula(Text)	Resolved value become the Affiliation tab label.
External ID	MED_External_ID__c	Text(40)	External ID for allowing upsert operations.
Locked	MED_Locked__c	Formula(Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or cancelled or if a legal hold has been placed on it.
Override Lock	MED_Override_Lock__c	Checkbox	Indicates a lock on this record can be bypassed (true) or cannot be bypassed (false).
Parent Account	MED_Parent_Account__c	Master-Detail(Account)	Parent account of the affiliation.
Parent Account Name	MED_Parent_Account_Name__c	Formula(Text)	Pulls the parent account name onto the affiliation object.
Role	MED_Role__c	Text(100)	Indicates the role of the individual at an institution.
Source	MED_Source__c	Picklist	Source of the affiliation link between accounts.
Status	MED_Status__c	Picklist	Status of the Affiliation record.

Contact Information

The Contact Information object stores all the contact information for an Account.

Contact Information schema

Field label	API name	Data type	Description
Account	MED_Account__c	Master-Detail(Account)	Account that this Contact Information is related to.
Address Line 1	MED_Address_Line_1__c	Text(100)	First line of an address.
Address Line 2	MED_Address_Line_2__c	Text(100)	Second line of an address.
City	MED_City__c	Text(40)	City of an address.
Concatenated Address	MED_Concatenated_Address__c	Formula(Text)	Combines the address fields into a single line of text for display.
Country	MED_Country__c	Picklist	Country of an address.
Email	MED_Email__c	Email	Email address of the account.
External ID	MED_External_ID__c	Text(120)	Reference ID to an external system.
Fax	MED_Fax__c	Phone	Fax number of the account.
Locked	MED_Locked__c	Formula(Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or canceled or if a legal hold has been placed on it.
Override Lock	MED_Override_Lock__c	Checkbox	Indicates the lock on this contact should be ignored while performing updates. This field, when set to true, should be set back to false via workflow.
Phone	MED_Phone__c	Phone	Phone number of an account.
Postal Code	MED_Postal_Code__c	Text(20)	Postal code of an address.
Primary	MED_Primary__c	Checkbox	Indicates if the record is the primary contact information record for a particular record type (true) or not (false). A trigger ensures that there is only one primary for each record type.
Profile	MED_Profile_Handle_URL_ID__c	Text(255)	Social media account for an account.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - Address - Email - Fax - Phone - Social
Related Address	MED_Related_Address__c	Lookup(Contact Information)	Related address for other types of contact information.
Source	MED_Source__c	Picklist	Name of the external system that is the source of the data.
State	MED_State__c	Picklist	State of an address.
Status	MED_Status__c	Picklist	Determines if the record will return in search results.
Type	MED_Type__c	Picklist	Indicates additional information about the contact information.
Value	MED_Value__c	Formula(Text)	Returns the appropriate contact information for the record, so that the correct value can display in search results.

Data Change Request

The Data Change Request object stores information about requested changes to managed Account and Contact Information records and is on the master side of a master-detail relationship with the Data Change Request Line object, which captures the old and new values for change requests.

supports master data management (MDM) integrations with Veeva Network and custom account search handlers. If your instance is integrated with Veeva Network, every time a data change is submitted, a Data Change Request record is created and associated with the relevant Account or Contact Information record via a lookup field. A single Data Change Request record cannot capture more than one change request. This means that each Data Change Request record should only ever have one of these lookup fields populated at a time: MED_Account__c, MED_Contact_Information__c, or MED_Parent_Account__c. If you use a custom master data management solution, this restriction and model may not apply.

Data Change Request schema

Field label	API name	Data type	Description
Account	MED_Account__c	Lookup(Account)	Account to be modified or parent Account of other records being modified.
Account External ID	MED_Account_External_ID__c	Text(100)	Unique identifier of the Account in the external Master Data Management source. When the status of this record changes to Processed, this value is stamped on the related Account's External ID field.
Address	MED_Contact_Information__c	Lookup(Contact Information)	Address to be modified.
Address External ID	MED_Address_External_ID__c	Text(100)	Unique identifier of the Address in the external Master Data Management source. When the status of this record changes to Processed, this value is stamped on the related Account's External ID field.
Country Mapping	MED_Country_Mapping__c	Text(2)	Country code used for mapping when the Data Change Request is processed.
Data Change Request Number	Name	Auto Number	Number that is automatically assigned to the Data Change Request record upon the record's creation.
Date Time	MED_Date_Time__c	Date/Time	Date and time the request was submitted.
DCR External ID	MED_DCR_External_ID__c	Text(100) (External ID) (Unique Case Insensitive)	External Data Change Request ID.
Error	MED_Error__c	Text(255)	Details of any errors that occurred during outbound or inbound data change request updates. Errors are cleared after the requested update is successfully processed.
Notes	MED_Notes__c	Text Area(255)	User notes.
Parent Account	MED_Parent_Account__c	Lookup(Account)	Lookup to a parent Account.
Parent Account External ID	MED_Parent_Account_External_ID__c	Text(100)	Unique identifier of the parent account in the external Master Data Management source. When the status of this record changes to Processed, this value is stamped on the related parent Account's External ID field.
Parent Data Change Request	MED_Parent_Data_Change_Request__c	Lookup(Data Change Request)	Link to the parent Data Change Request record. This field is only used when multiple Data Change Request records are created in a single step. The Account Data Change Request record is always the parent, and the other Data Change Request records that were created in the same step are linked to it.
Record Type	RecordTypeId	Record Type	Id of the record type. Native DCR functionality utilizes these record types: - Account - utilized when the associated Account record is either (1) new or modified or (2) the parent Account of other modified records. - Address - utilized when the associated Contact Information record is new or has been modified. - Parent - utilized when the associated Institution Account record is new or has been modified. These additional record types exist in case you want to configure a custom DCR handler: - Email - Fax - Phone - Social
Result	MED_Result__c	Picklist	Result of the data change request. The master data management source returns this value. Results include: - Partial - Accepted - Rejected - Modified - Already Applied
Sent Datetime	MED_Sent_Datetime__c	Date/Time	Date and time the record was sent to the master data management source for approval.
Status	MED_Status__c	Picklist	Status of the requested change. Statuses include: - Submitted - the record has been sent to the MDM for processing but has not yet been processed. - Pending - the record has not been sent to the MDM for a data steward to process. Only Data Change Request records that have this value will be sent to the MDM for processing. - Processed - the record has been processed or canceled by a data steward. When this status value is set, a trigger performs any necessary merge work and then updates the External ID field on the related Account or Contact Information record. - Canceled - the native DCR functionality does not use this status.
Type	MED_Type__c	Picklist	Type of change requested. Types include: - Delete - the native DCR configuration does not utilize this Type. - Edit - indicates that a change was made to the Account record or that the related Parent Account or Contract Information record was created or modified. - New - indicates that the related Account record was created. This value never applies to related Parent Account or Contact Information records.

Data Change Request Line

The Data Change Request Line object captures the new and old data values from a data change request. Data Change Request Line is on the detail side of a master-detail relationship with the Data Change Request object, which stores information about requested changes to managed Account and Contact Information records.

Data Change Request Line schema

Field label	API name	Data type	Description
Data Change Request	MED_Data_Change_Request__c	Master-Detail(Data Change Request)	Lookup to the parent Data Change Request record.
DCR Line Number	Name	Auto Number	Number that is automatically assigned to the Data Change Request Line record upon the record's creation.
Field API Name	MED_Field_API_Name__c	Text(43)	API name of the field in the customer relationship management (CRM) that the change request relates to.
Field Name	MED_Field_Name__c	Text(40)	Name of the modified field in .
Final Value	MED_Final_Value__c	Long Text Area(4000)	Field value after a data steward manually processes the data change request in the MDM/Veeva Network. If the data steward rejects the New Value, the Final Value could be the same value as the Old Value. If the New Value is accepted, the Final Value might match the New Value. Data stewards might also modify the New Value. For example, a data steward could change Street to St. for consistency. The Final Value is set when the completed data change request from the MDM/Veeva Network is pulled.
Is Address Field	MED_Is_Address_Field__c	Checkbox	Indicates whether the field the change request relates to is part of an address (true) or not (false).
New Value	MED_New_Value__c	Long Text Area(4000)	Field value that is requested in the change request and that is sent to the master data management (MDM) system.
Old Value	MED_Old_Value__c	Long Text Area(4000)	Field value before the change occurs.

Debug Log

The Debug Log (mvn__Debug_Log__c) custom object stores application warnings and error logs.

mvn__Debug_Log__c schema

Field label	API name	Data type	Description
Body	mvn__Body__c	Text(255)	Stores the full error or warning message.
Class	mvn__Class__c	Text(50)	The class name, if applicable.
Log Number	Name	Auto Number	The auto-generated record name.
LWC	mvn__LWC__c	Text(50)	The name of the Lightning Web Component, if applicable.
Message	mvn__Message__c	Text(255)	The debug message.
Method	mvn__Method__c	Text(50)	The method name, if applicable.
Severity	mvn__Severity__c	Picklist	The severity of the log: - ERROR - WARN - INFO - FINE - FINER - FINEST
Stack Trace	mvn__Stack_Trace__c	Text(255)	The stack trace for the exception, if applicable.

Document

Document (mvn__CM_Document__c) is a fundamental custom object consisting of metadata. Each Document record can have many associated Document Version (mvn__CM_Document_Version__c) records.

mvn__CM_Document__c schema

Field Label	API Name	Data Type	Description
Cloned From	mvn__CM_Cloned_From__c	Lookup(Document)	The related Document (mvn__CM_Document__c) record from which this document was cloned.
Created By Name	mvn__CM_Created_By_Name__c	Formula (Text)	Full name of the user who created the document.
Customer Id	mvn__CM_Customer_Id__c	Text(255) (External ID)	Customer ID associated to the document.
Document Lifecycle Developer Name	mvn__CM_Document_Lifecycle_Developer_Name__c	Text(255)	DeveloperName of the document's Lifecycle.
Document Number	Name	Auto Number	Autogenerated Document Number. :::: note ::: title ::: If you make a change to the Auto Number format, an update to will override it. ::::
External Content Version Id	mvn__CM_External_Content_Version_Id__c	Text(18)	ID of the latest External Content Version associated with the document.
Language	mvn__CM_Latest_Version_Language__c	Formula (Text)	Latest version's Language.
Latest Version	mvn__CM_Latest_Version__c	Lookup(Document Version)	Pointer to the latest document version.
Mute Document Level Notifications?	mvn__CM_Mute_Document_Level_Notifications__c	Checkbox	Whether this document has system event notifications muted.
Preview	mvn__CM_Preview__c	Formula (Text)	Latest version's preview/thumbnail URL.
Status	mvn__CM_Latest_Version_Status__c	Formula (Text)	Latest version's Status.
Subtype	mvn__CM_Latest_Version_Subtype__c	Formula (Text)	Latest version's Subtype.
Title	mvn__CM_Latest_Version_Title__c	Formula (Text)	Latest version's Fully Qualified Name.
Type	mvn__CM_Latest_Version_Type__c	Formula (Text)	Latest version's Type.

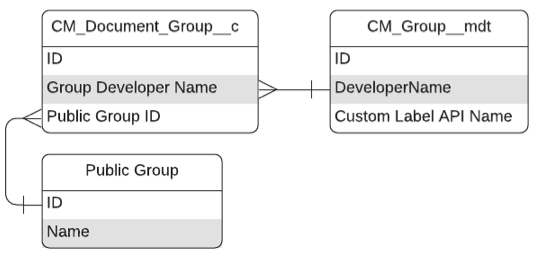

Document Group

Document groups define groups of users and are maintained in the CM_Document_Group__c custom object. A document group is always associated with both a Public Group and a Group.

mvn__CM_Document_Group__c schema

Field label	API name	Data type	Description
Document Group Name	Name	Text(80)	Name of the Document Group.
Group Developer Name	mvn__CM_Group_Developer_Name__c	Text(255)	DeveloperName of the associated Group__mdt record.
Public Group Id	mvn__CM_Public_Group_Id__c	Text(255)	The ID of the Salesforce Public Group.

Document Region

Document Region (CM_Document_Region__c) is a junction between the Region and Document Version custom objects. A validation rule ensures that a Document Region can only be created if it looks up to a Region and a Document Version.

mvn__CM_Document_Region__c schema

Field label	API name	Data type	Description
Country ISO Code	mvn__CM_Country_ISO_Code__c	Formula(Text)	ISO 3166-1 country code.
Document Region Name	Name	Auto Number	Auto-generated name of the document region.
Document Version	mvn__CM_Document_Version__c	Master-Detail(Document Version)	Associated version of a document.
External ID	mvn__CM_External_ID__c	Text(255) (External ID) (Unique Case Insensitive)	External ID used for Apex DML purposes.
Region	mvn__CM_Region__c	Lookup(Region)	Associated region.

Document Relationship

Document Relationship (mvn__CM_Document_Relationship__c) is a polymorphic junction object between either:

• Document version and document version

  Document version and document version relationship

  Document Version 1	Document Version 2	Product	Category	Type
  <document version 1 ID>	<document version 2 ID>		Document	Bundle
  ::::

• Document version and product

  Document version and product relationship

  Document Version 1	Document Version 2	Product	Category	Type
  <document version 1 ID>		<product ID>	Product
  ::::

A document relationship record is deleted if one of the lookup objects it connects is deleted. For example, a document relationship connecting Document A to Document B is deleted if either Document A or Document B is deleted.

mvn__CM_Document_Relationship__c schema

Field label	API name	Data type	Description
Category	CM_Category__c	Formula(Text)	Category of the relationship (document vs product).
Controlling Document Version Id	CM_Controlling_Document_Version_Id__c	Formula (Text)	Either Document Version 1 or Document Version 2. If the value of CM_Type__c is Local Version or Translation, the Controlling Document Version Id is Document Version 1. If the value of CM_Type__c is Bundle, Relevant, or Sourced, the Controlling Document Version Id is Document Version 2. The Controlling Document Version Id field is only set when the CM_Category__c equals Document.
Dependent Document Name	CM_Dependent_Document_Name__c	Formula (Text)	Either Document Version 1 or Document Version 2. If the value of CM_Type__c is Local Version or Translation, the Dependent Document Name is Document Version 2. If the value of CM_Type__c is Bundle, Relevant, or Sourced, the Dependent Document Name is Document Version 1. The Dependent Document Name field is only set when the CM_Category__c equals Document.
Document Relationship Name	Name	Auto Number	Autogenerated record name.
Document Version 1	CM_Document_Version_1__c	Lookup(Document Version)	Version that is the source of the relationship.
Document Version 2	CM_Document_Version_2__c	Lookup(Document Version)	Version that is the target of the relationship.
Document Version 2 Name	CM_Document_Version_2_Name__c	Formula (Text)	Fully qualified name of the target version.
External ID	CM_External_ID__c	Text(255) (External ID) (Unique Case Insensitive)	External ID used for Apex DML purposes.
Product	MED_Product__c	Lookup(Product)	Product associated to Document Version 1.
Type	CM_Type__c	Picklist	Type of the relationship if the Category is a document-document relationship. Visit Relationships.

Document Role

Document Role is a child to Document and is managed in the CM_Document_Role__c custom object.

mvn__CM_Document_Role__c schema

Field label	API name	Data type	Description
Document	mvn__CM_Document__c	Master-Detail(Document)	Document associated to this Document Role.
Document Group	mvn__CM_Document_Group__c	Lookup(Document Group)	Document Group associated to this Document Role.
Document Role Name	Name	Auto Number	Name of the Document Role.
External ID	mvn__CM_External_ID__c	Text(255) (External ID) (Unique Case Insensitive)	For Apex DML purposes.
Public Group ID	mvn__CM_Public_Group_ID__c	Formula (Text)	ID of the Public Group associated to this Document Role, if one exists (via the Document Group).
Role Custom Label API Name	mvn__CM_Role_Custom_Label_API_Name__c	Text(255)	Stamped with the Custom Label API Name defined on the Role.
Role Developer Name	mvn__CM_Role_Developer_Name__c	Text(255)	Stamped with the DeveloperName of the Role.
Role User Name	mvn__CM_Role_User_Name__c	Formula (Text)	Name of the user associated to this Document Role, if one exists (via the user).
User	mvn__CM_User__c	Lookup(User)	User associated to this Document Group.

Document Role Share

The Document Role Share (mvn__CM_Document_Role_Share__c) object is a utility object for keeping track of sharing records for various  objects. It has a Master-detail relationship with the Document Role object.

Document Role Share schema

Field label	Field name	Data type	Description
Document Role	mvn__CM_Document_Role__c	Mater-detail (Document Role)	Document roles manage users or groups and their associated role(s) on a document. This field has a Master-detail relationship to the Document Role Share object.
Document Role Share Name	Name	Auto Number	Automatically incremented record number.
Object Share Id	mvn__CM_Object_Share_Id__c	Text (18) (External ID)	ID of the Object Share record associated to the Document Role Share object.
Share Object Name	mvn__CM_Share_Object_Name__c	Text (255)	The name of the Share object this record makes reference to, e.g. mvn__CM_Document_Version__Share.

Document Version

A mvn__CM_Document_Version__c record maps to a mvn__CM_Document__c record. Many mvn__CM_Document_Version__c records can map to the same mvn__CM_Document__c record. Each mvn__CM_Document_Version__c record associated to the same mvn__CM_Document__c record can have different metadata and a different internal or external file associated to it.

Note: ships with a mvn__CM_Document_Version__c field set named mvn__CM_System_Fields. This field set is considered protected system metadata and should not be modified or deleted.

mvn__CM_Document_Version__c Schema

Field label	API name	Data type	Description
Allowed Audience	mvn__CM_Allowed_Audience__c	Picklist (Multi-Select)	Audience allowed to use the document version.
Allowed Requests	MED_Allowed_Requests__c	Text(255)	Comma-separated list of Request Names in that this document is allowed to be attached to.
Answer	mvn__CM_Answer__c	Rich Text Area(32768)	FAQ answer content for a FAQ document version.
Approved Channels	mvn__CM_Approved_Channels__c	Picklist (Multi-Select)	Channels where the document version can be consumed.
Changelog	mvn__CM_Changelog__c	Text Area(255)	Description of changes made to a document version. The Changelog for the first version of a document is blank.
Check Out Date Time	mvn__CM_Check_Out_Date_Time__c	Date/Time	Date and time when the document version was checked out.
Check Out Id	mvn__CM_Check_Out_Id__c	Text(36) (External ID)	Unique identifier for the checkout.
Check Out Type	mvn__CM_Check_Out_Type__c	Picklist	Type of check out the user requested. Picklist values include: - Office 365 - Local - FilesConnect
Check Out URL	mvn__CM_Check_Out_URL__c	URL(255)	URL where the file is stored in Microsoft 365.
Check Out User	mvn__CM_Check_Out_User__c	Lookup(User)	User who checked out the document version.
Check Out User Name	mvn__CM_Check_Out_User_Name__c	Formula (Text)	Full name of the user who checked out the document version.
Checked Out	mvn__CM_Checked_Out__c	Formula (Checkbox)	Whether the document version is currently checked out.
Classification	mvn__CM_Classification__c	Picklist	Classification of the document version. Classification depends on Document Subtype. Visit Document Types.
Content (rich text)	mvn__CM_Content_Rich_Text__c	Rich Text Area(32768)	A rich text field. For documents without files, content in this field will appear in the document preview. Merge fields are supported. For more information, reference Salesforce's documentation on Merge Fields.
Content Version Id	mvn__CM_Content_Version_Id__c	Text(18) (External ID)	Content Version ID of a file that is associated to the document version.
Custom Response	MED_Custom_Response__c	Formula (Checkbox)	Formula to determine if this is a custom response document that should be restricted in .
Delivery Option	mvn__CM_Delivery_Option__c	Picklist	Approved fulfillment delivery options for the document version.
Description	mvn__CM_Description__c	Text Area(255)	Description of the document version.
Document	mvn__CM_Document__c	Lookup(Document)	Parent document of the document version.
Document Lifecycle	mvn__CM_Document_Lifecycle__c	Formula (Text)	Lifecycle of the parent document. Visit Document Lifecycles.
Document Number	mvn__CM_Document_Number__c	Formula (Text)	Document number of the parent document.
Document Response ID	mvn__CM_Document_Response_ID__c	Long Text Area(1000)	Comma-separate list of document request IDs associated to the document version.
Document Subtype	mvn__CM_Document_Subtype__c	Picklist	Subtype of the document version. Subtype depends on Document Type and controls Document Classification. Visit Document Types.
Document Type	mvn__CM_Document_Type__c	Picklist	Document Type of the document version. Visit Document Types.
Document Version Name	Name	Auto Number	Automatically generated name of the document version.
Expiration Date	mvn__CM_Expiration_Date__c	Date/Time	Expiration date of the document version.
Expiration Reminder Date	mvn__CM_Expiration_Reminder_Date__c	Date	Date when expiration reminders are sent.
External File	mvn__CM_External_File__c	Checkbox	Whether the document version points to an external file.
External URL	mvn__CM_External_URL__c	URL(255)	URL of an externally hosted file that is associated to the document version.
File Extension	mvn__CM_File_Extension__c	Text(40)	Extension of the related file.
File Id	mvn__CM_File_Id__c	Text(255) (External ID)	File ID of a file that is associated the document version.
File Size	mvn__CM_File_Size__c	Number(9, 0)	Size of the associated file in bytes.
Fully Qualified Name	mvn__CM_Fully_Qualified_Name__c	Formula (Text)	Fully Qualified Name of the document version. The Fully Qualified Name is comprised of the Title followed by the Version Number. For example, if the Fully Qualified Name of a document version is Dosing Guide (v0.4), Dosing Guide is the Title, and 0.4 is the Version Number.
Is Clone	mvn__CM_Is_Clone__c	Checkbox	True when the document version has been cloned from an existing document.
Is Latest Version	mvn__CM_Is_Latest_Version__c	Checkbox	Whether this is the latest document version of the document record that the document version is associated to.
Language	mvn__CM_Language__c	Picklist	Language of the document version.
Latest Document Version ID	mvn__CM_Latest_Document_Version_ID__c	Formula (Text)	Record ID of the latest document version.
Latest Version Number	mvn__CM_Latest_Version_Number__c	Formula (Text)	Version number of the latest document version.
Latest Version Title	mvn__CM_Latest_Version_Title__c	Formula (Text)	Title of the latest document version.
Major Version Number	mvn__CM_Major_Version_Number__c	Number(18, 0)	Major version number of the document version. For example, if the Version Number is 5.4, the Major Version Number is 5.
Metadata Last Modified By	mvn__CM_Metadata_Last_Modified_By__c	Lookup(User)	User who last modified the document version's metadata. :::: note ::: title ::: This Metadata Last Modified By field should be used in place of Salesforce's standard Last Modified By (LastModifiedById) field. This is because the Last Modified By field is updated frequently by hidden and automatic processes. ::::
Metadata Last Modified Date	mvn__CM_Metadata_Last_Modified_Date__c	Date/Time	Date and time when the document version metadata was last modified.
Minor Version Number	mvn__CM_Minor_Version_Number__c	Number(18, 0)	Minor version number of the version. For example, if the Version Number is 5.4, the Minor Version Number is 4.
Preview	mvn__CM_Preview__c	Text Area(255)	Plain text preview of the document version.
Previous Document Version	mvn__CM_Previous_Document_Version__c	Lookup(Document Version)	Previous version of the document.
MIC Location	MED_Location__c	Picklist (Multi-Select)	The location in that this document applies to. Required for Work Instructions.
Product	mvn__CM_Product__c	Picklist (Multi-Select)	System field for querying products related to the document version. This field will not display data when queried using the standard API.
Products	mvn__CM_Products__c	Text(255)	An automated list of products from Document Relationship (CM_Document_Relationship__c) records. This is displayed on the Documents list view page and used for sorting MCM Product (mvn__CM_Product__c) records.
Question	mvn__CM_Question__c	Text Area(255)	FAQ question content for a FAQ document version.
Region	mvn__CM_Region__c	Picklist (Multi-Select)	System field for querying regions related to the document version. This field will not display data when queried using the standard API.
Regions	mvn__CM_Regions__c	Text(255)	An automated list of regions from Document Region (CM_Document_Region__c) records. This is displayed on the Documents list view page and used for sorting Region (mvn__Region__c) records.
Scheduled Publish Date	mvn__CM_Scheduled_Publish_Date__c	Date/Time	Date and time when the document version is scheduled to be published.
Sort Order	MED_Sort_Order__c	Number(3, 0)	Weighted order to present documents in a list, required for Work Instructions.
Status	mvn__CM_Status__c	Text(255) (External ID)	DeveloperName of the CM_Status__mdt associated to the document version.
Status Custom Label	mvn__CM_Status_Custom_Label__c	Text(255) (External ID)	Custom label for the document version's status.
Thumbnail	mvn__CM_Thumbnail__c	Formula (Text)	Thumbnail rendition of the document version. :::: warning ::: title ::: This field supersedes the Thumbnail URL field as of V15. ::::
Thumbnail URL	mvn__CM_Thumbnail_URL__c	Text(255)	Relative URL of the thumbnail rendition. :::: warning ::: title ::: This field has been deprecated as of V15. ::::
Title	mvn__CM_Title__c	Text(255) (External ID)	Title of the document version, e.g. Dosing Guide. Title does not include Version Number.
Translation Id	mvn__CM_Translation_Id__c	Text(255) (External ID)	The ID of this Document Version's translation request.
Translation Service	mvn__CM_Translation_Service__c	Text(255)	The third-party service used for the translation.
Translation Status	mvn__CM_Translation_Status__c	Picklist	The status of this document version's translation progress.
Version Number	mvn__CM_Version_Number__c	Formula (Text)	Version Number of the document version, e.g., "5.4" where "5" is the Major Version Number and "4" is the Minor Version Number.

Document Version Rendition

The Document Version Rendition custom object stores metadata for renditions and is on the detail side of a master-detail relationship with the Document Version custom object. This relationship ensures that if you have access to a Document Version record, you also have access to its Document Version Rendition child records.

CM_Document_Version_Rendition__c schema

Field label	API name	Data type	Description
Document Version	CM_Document_Version__c	Master-Detail(Document Version)	Document version record to associate the document rendition.
Document Version Rendition Name	Name	Auto Number	Autogenerated number of the document version rendition.
File Id	CM_File_Id__c	Text(255) (External ID)	File ID associated with the rendition.
Type	CM_Type__c	Text(255) (External ID)	Developer name of the rendition type. Visit Rendition Type.

Email Message

The Email Message standard object stores email messages.

Email Message schema

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Lookup(Adverse Event)	Relates the email message to an Adverse Event record.
Fulfillment	MED_Fulfillment__c	Lookup(Fulfillment)	Relates the email message to a Fulfillment record.
Locked	mvn__MED_Locked__c	Formula (Checkbox)	Formula that determines if the record is locked (true) or unlocked (false).
Override Lock	mvn__MED_Override_Lock__c	Checkbox	Allows for this email message to be edited even when it is locked.
Parent Interaction	ParentId	Lookup(Interaction)	Relates the email message to the parent Interaction record.
Product Quality Complaint	MED_Product_Quality_Complaint__c	Lookup(Product Quality Complaint)	Relates the email message to a Product Quality Complaint record.
Request	MED_Request__c	Lookup(Request)	Relates the email message to a Request record.

Fulfillment

The Fulfillment object stores written responses that agents send to accounts who submit medical inquiries. With a Fulfillment record, you can create package of information to send via email, fax, or mail. A Fulfillment Packages includes a cover letter and all the documents used to answer the account's questions. When you give an Account a verbal response, you do not create a Fulfillment record.

The Fulfillment object has a one-to-many lookup relationship with the Interaction object; a single Interaction record can be associated to multiple Fulfillment records.

Fulfillment schema

Field label	API name	Data type	Description
Account	MED_Account__c	Lookup(Account)	Account associated with the Fulfillment. When the Fulfillment record is created, this field is automatically populated with the same Account that was selected on the parent Interaction.
Address Line 1	MED_Address_Line_1__c	Text(100)	First line of the shipping address for the Fulfillment. When the Fulfillment record is created, this field is automatically populated with the Address Line 1 of the selected requester on the parent Interaction.
Address Line 2	MED_Address_Line_2__c	Text(100)	Second line of the shipping address for the Fulfillment. When the Fulfillment record is created, this field is automatically populated with the Address Line 2 of the selected requester on the parent Interaction.
Alerts	MED_Alerts__c	Formula (Text)	Shows a composite summary of different flags (urgent, roll up, escalated, locked, SLA).
Anonymize	MED_Anonymize__c	Checkbox	Indicates if the record should be anonymized. If True, a workflow removes personally identifiable information (PII) from the record.
Anonymous Key	MED_Anonymous_Key__c	Text(15) (External ID) (Unique Case Insensitive)	Stores a randomly generated key for use on anonymous Fulfillments.
Case Thread Token	MED_Case_Thread_Token__c	Formula (Text)	Copy of the related Case thread token that can be used for email merge fields.
CC Email	MED_CC_Email__c	Formula (Text)	Email address associated with the referrer. When the selected referrer on the parent Interaction is an HCP, this field is automatically populated with the email address associated with the selected referrer.
City	MED_City__c	Text(40)	Shipping city for the Fulfillment. When the Fulfillment record is created, this field is automatically populated with the City of the selected requester on the parent Interaction.
Country	MED_Country__c	Picklist	Country to fulfill to.
Credentials	MED_Credentials__c	Picklist	Medical credentials of the person receiving the Fulfillment Package.
Date/Time Closed	MED_Date_Time_Closed__c	Date/Time	Date and time the Fulfillment was closed.
Date/Time Opened	MED_Date_Time_Opened__c	Date/Time	Date and time the Fulfillment was opened.
Delivery Method	MED_Delivery_Method__c	Picklist	Method used to deliver the Fulfillment Package.
Display Name	MED_Display_Name__c	Formula (Text)	Resolved value becomes the Fulfillment tab label.
Email	MED_Email__c	Email	Email address associated with the fulfillment record. When the Fulfillment record is created, this field is automatically populated with the Email of the selected requester on the parent Interaction. This field is required when the Delivery Method for the Fulfillment is Email.
Escalated?	MED_Escalated__c	Formula (Text)	Displays icon if the Fulfillment is currently escalated.
Fax	MED_Fax__c	Phone	Fax number where the Fulfillment Package should be sent. This field is required when the Delivery Method for the Fulfillment is Fax.
First Name	MED_First_Name__c	Text(40)	First name of the person receiving the Fulfillment Package.
Fulfillment Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Fulfillment Owner	MED_Owner_HyperLink__c	Formula (Text)	Hyperlink to Owner record page.
Gender	MED_Gender__c	Picklist	Gender of the person receiving the Fulfillment Package.
Institution Name	MED_Institution_Name__c	Text(255)	Name of the institution associated with the person receiving the Fulfillment Package.
Interaction	MED_Case__c	Lookup(Interaction)	Lookup to the Interaction associated to this Fulfillment.
Interaction Account Id	MED_Interaction_Account_Id__c	Formula (Text)	Id of the Account selected on the parent Interaction.
Is Closed	MED_Is_Closed__c	Formula (Checkbox)	Indicates if the Fulfillment is closed.
Is Escalated	MED_Is_Escalated__c	Formula (Checkbox)	Indicates if the Fulfillment is currently escalated to another user. The field is marked as true if the Fulfillment Owner is different than the Interaction Owner.
Language	MED_Language__c	Picklist	Language of the Fulfillment content.
Last Name	MED_Last_Name__c	Text(80)	First name of the person receiving the Fulfillment Package.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold on the record. If true, the record cannot be modified, anonymized, or deleted.
Letter Personalization	MED_Letter_Personalization__c	Rich Text Area(32768)	Personalized message that is added to the cover letter of the Fulfillment Package.
Locked	MED_Locked__c	Formula (Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or cancelled or if a legal hold has been placed on it.
Locked Flag	MED_Locked_Flag__c	Formula (Text)	Displays icon when the record is locked.
Middle Name	MED_Middle_Name__c	Text(40)	Middle name of the person receiving the Fulfillment Package.
Owner	MED_Owner_Name_Formula__c	Formula (Text)	Calculates the owner name to use for tracking ownership.
Phone	MED_Phone__c	Phone	Phone number of the requester.
Postal Code	MED_Postal_Code__c	Text(20)	Shipping postal code for the Fulfillment Package. When the Fulfillment record is created, this field is automatically populated with the Postal Code of the selected requester on the parent Interaction.
Product List	MED_Product_List__c	Long Text Area(10000)	Comma separated list of unique products that are associated to the Request records that are being addressed with the Fulfillment record. The list contains the First Mention Display Names for the products.
QA Summary	MED_QA_Summary__c	Text Area(255)	Summary of the QA review of the Fulfillment record.
Recipient Name	MED_Recipient_Name__c	Text(255)	Full name of Fulfilment Package recipient, including salutation, suffix, and medical credentials.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - Fulfillment - Fulfillment - Closed
Reopen Reason	MED_Reopen_Reasons__c	Picklist	Reason the Fulfillment was reopened.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the Fulfillment was reopened.
Reset Fulfillment Line Items?	MED_Reset_Fulfillment_Line_Items__c	Checkbox	If checked, existing Fulfillment Line Items are deleted from the Fulfillment record and replaced with new ones.
Salutation	MED_Salutation__c	Picklist	Salutation of the requester.
State	MED_State__c	Picklist	Shipping state for the Fulfillment. When the Fulfillment record is created, this field is automatically populated with the State of the selected requester on the parent Interaction.
State Formula	MED_State_Formula__c	Formula (Text)	Formula field to pull State into the cover letter without the Country prefix.
Status	MED_Status__c	Picklist	Status of the Fulfillment. The record is locked when closed, and the record is locked and removed from reporting when cancelled.
Suffix	MED_Suffix__c	Text(40)	Suffix of the requester.
Title	MED_Title__c	Text(80)	Title of the requester.
Total Requests in Fulfillment	MED_Total_Fulfilments__c	Roll-Up Summary (COUNT Request Fulfillment)	Number of Request records that are being fulfilled.
Transfer Reason	MED_Transfer_Reason__c	Picklist	Reason the fulfillment was transferred/escalated.

Inbound Form

The Inbound Form object provides a mechanism to capture medical inquiries from other systems electronically. It has a 1:1 lookup relationship with the Request object.

When an Inbound Form record is created, information from that record propagates to the appropriate locations within , and a user can begin working on the medial inquiry. Visit Inbound Forms.

Inbound Form schema

Field label	API name	Data type	Description
Address Line 1	MED_Address_Line_1__c	Text(100)	First line of the Requester's shipping address.
Address Line 2	MED_Address_Line_2__c	Text(100)	Second line of the Requester's shipping address.
Anonymize	MED_Anonymize__c	Checkbox	Flags the record to be anonymized. If true, a workflow removes personally identifiable information (PII) from the record.
Channel	MED_Channel__c	Picklist	Source of the Inbound Form, such as MIRF or chat.
Channel Details	MED_Channel_Details__c	Text(75)	Details about the inbound form channel. This field is used in conjunction with MED_Group_Identifier__c to ascertain whether a given record belongs to an Inbound Form Group.
City	MED_City__c	Text(40)	City of the Requester's shipping address.
Confirm Recreate Request	MED_Recreate_Request__c	Checkbox	Indicates whether to create a Request record from the Inbound Form (true) or not (false). The Request record that is created from an Inbound Form does not replace an existing Request record. When this value is set to true and then saved, a Request record is created, and the field's value is automatically changed back to false.
Country	MED_Country__c	Picklist	Country of the Requester's shipping address.
Date Submitted	MED_Date_Submitted__c	Date	Date the medical inquiry was created within the source system.
Datetime Submitted	MED_Datetime_Submitted__c	Date/Time	Date and time the medical inquiry was created within the source system.
Delivery Method	MED_Delivery_Method__c	Picklist	Delivery method that should be used to respond to the medical inquiry.
Email	MED_Email__c	Email	E-mail address of the Requester.
External ID	MED_External_ID__c	Text(50) (External ID) (Unique Case Sensitive)	Source system ID. All custom integrations or custom code creating Inbound Forms must populate MED_External_ID__c with a unique value. Integrations that do not fill out this required field will fail. If your source system is Veeva, the External ID is the MIRF Id. If you use a source system that is not Veeva, the External Id is the Id of the question used to track the sent question.
Fax Number	MED_Fax_Number__c	Phone	Fax number of the medical inquiry.
Federation Id	MED_Federation_Id__c	Text(200)	External ID of an Account to designate as the Referred By, typically an employee, e.g., a sales representative.
Group Identifier	MED_Group_Identifier__c	Text(100) (External ID)	Identifier that groups multiple medical inquiries together. Not every Inbound Form has a Group Identifier.
Has Signature	MED_Has_Signature__c	Checkbox	Indicates if the Inbound Form has a signature value (true) or not (false).
Inbound Form Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Inquiry Text	MED_Inquiry_Text__c	Long Text Area(32000)	Question being asked by the Account.
Interaction Notes	MED_Interaction_Notes__c	Long Text Area(32768)	Notes about the medical inquiry. This field maps and propagates Case.MED_Case_Notes__c. :::: note ::: title ::: The Interaction Notes field is only available in Classic. ::::
Language	MED_Language__c	Picklist	Preferred language for the medical inquiry response.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold (true) or not (false). If true, the record cannot be modified, anonymized, or deleted.
Medical Inquiry IsClosed	MED_Inquiry_IsClosed__c	Checkbox	Indicates if the medical inquiry in the source system is closed (true) or not (false).
Phone Number	MED_Phone_Number__c	Phone	Phone Number of the medical inquiry.
Postal Code	MED_Postal_Code__c	Text(20)	Postal code where the Inbound Form originated.
Product	MED_Product__c	Text(100)	Product that the medical inquiry is about.
Referred By Company	MED_Referred_By_Company__c	Picklist	Name of the company associated with the Referred By. This field is typically used if there are JV partnerships.
Referred By Email	MED_Referred_By_Email__c	Email	Email of the Referred By.
Referred By Name	MED_Referred_By_Name__c	Text(255)	Name of the Referred By. This field is used if there is no external ID for the Referred By. Values should be concatenated into the field.
Referred By Phone	MED_Referred_By_Phone__c	Phone	Phone number of the Referred By.
Request Creation Log	MED_Request_Creation_Log__c	Long Text Area(32768)	Logs issues that occurred when the Inbound Form was inserted.
Requester External ID	MED_Requester_External_ID__c	Text(120)	External ID of the Requester.
Requester Gender	MED_Requester_Gender__c	Picklist	Gender of the Requester.
Requester Name	MED_Requester_Name__c	Text(255)	Name of the Requester. This field is used if there is no external ID for the Requester. Values should be concatenated into the field.
Signature	MED_Signature__c	Long Text Area(131072)	64 bit encoded image data for an individual's signature.
State	MED_State__c	Picklist	State of the Requester's shipping address.
Status	MED_Status__c	Picklist	Current status of the medical inquiry. This field should be marked as Read-Only on all page layouts.
Suppress Request Creation	MED_Suppress_Request_Creation__c	Checkbox	When checked (true), the automatic creation of Requests and Notes and the linking of these records to the appropriate Interaction is suppressed and will not happen.
Updates Pending	MED_Updates_Pending__c	Checkbox	Indicates if there are pending updates that need to be synced back to the source system (true) or not (false). Veeva MIRF scheduled jobs use this field.

Interaction

The Interaction object is the central object of . An Interaction record stores a requester's contact information and information about how and when the requester reached out to the contact center. From an Interaction, you can create child records to record and address inquiries and record reported Adverse Events and Product Quality Complaints. An Interaction can have more than one child record of the same type.

Note: The Interaction object is the Case standard object with a modified label, and as a result, references to Case exist in the application's code and declarative configuration.

Interaction schema

Field label	API name	Data type	Description
Account Name	AccountId	Lookup(Account)	ID of the associated Account record.
Address	MED_Address_Lookup__c	Lookup(Contact Information)	Lookup to the Contact Information record representing the chosen address for this case.
Address Line 1	MED_Address_Line_1__c	Text(100)	Address line 1 of the address chosen for the requester on the Interaction.
Address Line 2	MED_Address_Line_2__c	Text(100)	Address line 2 of the address chosen for the requester on the Interaction.
AE Identified?	MED_AE_Identified__c	Picklist	Indicates if an Adverse Event was identified as part of the Interaction.
Alerts	MED_Alerts__c	Formula (Text)	Shows a composite summary of different flags (urgent, roll up, escalated, locked, SLA).
ANI	MED_ANI__c	Phone	A historical record of the phone number that was used to call the contact center and is stamped on the case.
Anonymize	MED_Anonymize__c	Checkbox	Indicates if the record should be anonymized. If True, a workflow removes Personally Identifiable Information (PII) from the record.
Appropriate Selection of Content	MED_Appropriate_Selection_of_Content__c	Picklist	Result of the QA review of the content selected for response on the Interaction.
Business Hours	BusinessHoursId	Lookup(Business Hours)	ID of the Business Hours record associated with the Interaction record.
Case Notes	MED_Case_Notes__c	Long Text Area(32768)	Hidden field used to hold the custom Case Notes entered in the Visualforce page to the right of the Case Feed.
Channel	Origin	Picklist	Source of the case, such as phone or email.
Channel Details	MED_Channel_Details__c	Text(255)	Contains the channel details, such as the specific phone number or email address the customer used to contact the contact center.
City	MED_City__c	Text(40)	City value of the address chosen for the requester on the Interaction.
Concatenated Address	MED_Concatenated_Address__c	Formula (Text)	Combines the address fields into a single line of text for display and matching.
Consent Capture Type	MED_Consent_Capture_Type__c	Picklist	Type of consent captured, verbal or written.
Consent Status	MED_Consent_Status__c	Picklist	Indicates if the caller provided consent.
Country	MED_Country__c	Picklist	The country of the Interaction. This is required and it drives functionality and visibility of the Interaction.
Created Manually	MED_Created_Manually__c	Checkbox	Indicates if the Interaction was manually created by a user of the system. This field is used to determine if users are allowed to edit the Channel details. If True, users can edit the channel information. If False, channel information is locked.
Display Name	MED_Display_Name__c	Formula (Text)	Resolved value used as the Interaction tab label or quick identifier.
Email	MED_Email_Lookup__c	Lookup(Contact Information)	Lookup to the Contact Information record representing the chosen email for this case.
Email	MED_Email__c	Email	Email address to use for communications related to the Interaction.
Email Thread Token	mvn__MED_Email_Thread_Token__c	Text(120)	Stores the Lightning Threading token so it can be used from other objects.
Escalated	MED_Escalated2__c	Checkbox	Indicates if the Interaction was escalated by the Escalation Trigger on Ownership Transfer.
Escalated AEs	MED_Escalated_AEs__c	Number(2, 0)	Number of escalated Adverse Event records associated with the Interaction.
Escalated Fulfillments	MED_Escalated_Fulfillments__c	Number(2, 0)	Number of escalated Fulfillment records associated with the Interaction.
Escalated PQCs	MED_Escalated_PQCs__c	Number(2, 0)	Number of escalated Product Quality Complaint records associated with the Interaction.
Escalated Requests	MED_Escalated_Requests__c	Number(2, 0)	The number of escalated Request records associated with the Interaction.
Escalation Flag	MED_Escalation_Flag__c	Formula (Text)	Indicates if the Interaction or any child records are escalated in the Alerts field.
Escalations Outstanding	MED_Escalations_Outstanding__c	Formula (Number)	Total number of escalated records associated with the Interaction.
Fax	MED_Fax_Lookup__c	Lookup(Contact Information)	Lookup to the Contact Information record representing the chosen fax for this Interaction.
Fax	MED_Fax__c	Phone	Fax to use for communications on this Interaction.
Follow-up token	MED_Follow_Up_Token__c	Text(32) (External ID)	Temporary unique token value used for a request follow-up subscription.
Inquiry Routing Flag	mvn__MED_Inquiry_Routing_Flag__c	Formula (Text)	Displays an image specified by the Inquiry Routing Flag Icon if it has been set.
Inquiry Routing Flag Icon	mvn__MED_Inquiry_Routing_Flag_Icon__c	Text(255)	Image URL to use for the Inquiry Routing Alert Flag.
Institution	MED_Institution__c	Lookup(Account)	Business account that is associated to this Interaction.
Institution Address Lookup	MED_Institution_Address_Lookup__c	Lookup(Contact Information)	Selected address for the institution on the Interaction.
Institution Fax Lookup	MED_Institution_Fax_Lookup__c	Lookup(Contact Information)	Selected fax for the institution on the case.
Institution Name	MED_Institution_Name__c	Text(255)	Name of the institution associated to the Interaction.
Interaction Items Outstanding	MED_Outstanding_Interaction_Items__c	Formula (Number)	Total number of Items left to do on the Interaction.
Interaction Number	CaseNumber	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Interaction Owner	MED_Owner_HyperLink__c	Formula (Text)	Hyperlink to the Owner record page.
Interaction Record Type	RecordTypeId	Record Type	ID of the record type assigned to the Interaction. Record types include: - Interaction - Interaction - Closed
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates that the record cannot be modified, anonymized, or deleted because a legal hold has been placed on the record.
Locked	MED_Locked__c	Formula (Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or canceled or if a legal hold has been placed on it.
Locked Flag	MED_Locked_Flag__c	Formula (Text)	Indicates if any child records listed in the Alerts field are locked.
Medical Inquiry Group Identifier	MED_Incoming_Inquiry_Group_Identifier__c	Text(100) (External ID) (Unique Case Sensitive)	Group Identifier value from multiple Product Inquiries. This field is automatically populated when the Interaction is generated.
New Email Response	MED_New_Email_Response__c	Checkbox	Checkbox that is updated via workflow and used to generate an email notification to agents that a new email-to-case update has been made.
Next Due Date	MED_Next_Due_Date__c	Date/Time	Most imminent due date amongst all Interaction children.
Next Warning Date	MED_Next_Due_Date_Warning__c	Date/Time	Most imminent warning date among all child records listed in the Alerts field.
Open AEs	MED_Open_AEs__c	Number(2, 0)	Number of open Adverse Event records on the Interaction. The value for this field is calculated via flow on Adverse Event create/edit.
Open Fulfillments	MED_Open_Fulfillments__c	Number(2, 0)	Number of open Fulfillment records on the Interaction. The value for this field is calculated via flow on Fulfillments create/edit.
Open PQCs	MED_Open_PQCs__c	Number(2, 0)	Number of open Product Quality Complain records on the Interaction. The value for this field is calculated via flow on Product Quality Complaint create/edit.
Open Requests	MED_Open_Requests__c	Number(2, 0)	Number of open Request records on the Interaction. The value for this field is calculated via flow on Request create/edit.
Owner	MED_Owner_Name_Formula__c	Formula (Text)	Calculates the owner name to use for tracking ownership.
Owner Items Outstanding	MED_Outstanding_Owner_Items__c	Formula (Number)	Number of to do items for the owner. This number is calculated by adding together the number of open child records and then subtracting the number of Request records that are escalated.
Phone	MED_Phone_Lookup__c	Lookup(Contact Information)	Lookup to the Contact Information record representing the chosen phone number for this Interaction.
Phone	MED_Phone__c	Phone	Phone to use for communications on this Interaction.
Postal Code	MED_Postal_Code__c	Text(20)	Postal code of the requester's address that was selected during the Person Search.
PQC Identified?	MED_PQC_Identified__c	Picklist	Indicates if a Product Quality Complaint was identified during the Interaction.
QA Reason	MED_QA_Reason__c	Picklist	Reason the Interaction was flagged for QA review. Options include: - Automated - Interaction was selected as part of a monthly batch job. - Ad Hoc - Interaction was selected as part of a randomized Ad Hoc run. - Targeted - Interaction was explicitly and manually selected.
QA Status	MED_QA_Status__c	Picklist	Status of QA review for the Interaction.
Referred By	MED_Referred_By__c	Lookup(Account)	Lookup to the Person Account of the employee who referred the customer for this Interaction.
Referred By Email	MED_Referred_By_Email__c	Email	Email address of the referred by.
Referred By Email Lookup	MED_Referred_By_Email_Lookup__c	Lookup(Contact Information)	Selected email address for the referrer on the Interaction.
Referred By Name	MED_Referred_By_Name__c	Text(255)	Stamped name of the referred by on the Interaction.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the Interaction was reopened.
Requester Name	MED_Requester_Name__c	Text(255)	Stamped name of the requester on the Interaction.
Requester Type	MED_Requester_Type__c	Picklist	Type of requester that submitted the inquiry. The value is stamped based on the record type of the requester. The value can also be set manually if the requester is anonymous. This field is used to help categorize and report on anonymous Interactions.
SLA Flag	MED_SLA_Flag__c	Formula (Text)	Indicates if any child records listed in the Alerts field are past due. - A red flag displays if the SLA Flag value is 2. - An orange flag displays if the SLA Flag value is 1. - No flag displays if the SLA Flag value is not a 1 or 2.
Social Lookup	MED_Social_Lookup__c	Lookup(Contact Information)	Lookup to the Contact Information record representing the chosen social account for this case.
Social Profile	MED_Social_Profile__c	Text(255)	Social profile to use for communications on this case.
State	MED_State__c	Picklist	Stamped State value of the address chosen for the requester on the Interaction.
Status	Status	Picklist	Status of the Interaction.
To Do Summary	MED_To_Do_Summary__c	Formula (Text)	Summarizes the to do information in a list.
Total AEs	MED_Total_AE_s__c	Number(2, 0)	Number of Adverse Event records on the Interaction. The value for this field is calculated via flow on Adverse Event create/edit.
Total Fulfillments	MED_Total_Fulfillments__c	Number(2, 0)	Number of Fulfillment records on the Interaction. The value for this field is calculated via flow on Fulfillment create/edit.
Total PQCs	MED_Total_PQC_s__c	Number(2, 0)	Number of Product Quality Complaint records on the Interaction. The value for this field is calculated via flow on Product Quality Complaint create/edit.
Total Requests	MED_Total_Requests__c	Number(2, 0)	Number of Request records on the Interaction. The value for this field is calculated via flow on Request create/edit.
Transfer Reason	MED_Transfer_Reason__c	Picklist	Reason the Interaction and all child records owned by the Interaction owner were transferred.
Urgent	MED_Urgent__c	Checkbox	Indicates an Interaction is urgent per configured KHBI routing rules.
Urgent Flag	MED_Urgent_Flag__c	Formula (Text)	Indicates if any Requests listed in the Alerts field are marked as urgent.
Urgent Requests	MED_Urgent_Requests__c	Number(2, 0)	Rolls up Request records that are listed in the Alerts field and that are marked urgent.

Interaction QA

The Interaction QA object stores QA review scores for how well the parent Interaction record was handled and documented and is on the detail side of a master-detail relationship with the Interaction object. Multiple Interaction QA records can be associated to the same Interaction record. Visit QA review.

Interaction QA schema

Field label	API name	Data type	Description
Accuracy of Logging	MED_Accuracy_of_Logging__c	Picklist	Overall score of how well the Interaction was documented. A value of `4` indicates that the Interaction logging was accurate and complete. `1` is the lowest possible score.
Appropriate Documentation of AEs	MED_Appropriate_Documentation_of_AEs__c	Picklist	Score of how well the Interaction's Adverse Events were identified and documented. A value of `4` indicates that the Adverse Events were accurate and complete. `1` is the lowest possible score.
Appropriate Documentation of PQCs	MED_Appropriate_Documentation_of_PQCs__c	Picklist	Score of how well the Interaction's Product Quality Complaints were identified and documented. A value of `4` indicates that the Production Quality Complaints were accurate and complete. `1` is the lowest possible score.
Appropriate Selection of Content	MED_Appropriate_Selection_of_Content__c	Picklist	Score of how appropriate the selected content is. A value of `4` indicates that the selected content fully addressed the Requests. `1` is the lowest possible score.
Completed	MED_QA_Completed__c	Date/Time	Date and time that the QA review was completed.
Interaction	MED_Case__c	Master-Detail(Interaction)	The related Interaction record.
Interaction QA Name	Name	Auto Number	Record number for the QA Interaction record.
Overall Quality of Response(s)	MED_Quality_of_Response__c	Picklist	Score of how accurate, complete, and fair-balanced the responses are. A value of `4` indicates that the responses were correct. `1` is the lowest possible score.
Quality of Response Delivery	MED_Quality_of_Response_Delivery__c	Picklist	Score of how appropriate the selected response channel and the timeliness of the responses are. A value of `4` indicates that the response delivery channels were correct and the responses timely. `1` is the lowest possible score. Results of QA review of the Interaction based on the appropriate selection of response channel and timeliness of response.
Reason	MED_QA_Reason__c	Picklist	Defines the reason the case was flagged for QA review. Options include: - Automated - a monthly batch job selected the Interaction record for QA review - Ad Hoc - an ad hoc job randomly selected the Interaction record for QA review. - Targeted - a user manually selected the Interaction record for QA review.
Result	MED_QA_Result__c	Formula (Text)	Total score from the QA review. automatically calculates this value by adding the values from these fields: - Accuracy of Logging - Appropriate Documentation of AEs - Appropriate Documentation of PQCs - Appropriate Selection of Content - Overall Quality of Response(s) - Quality of Response Delivery The best possible score is 24.
Reviewer	MED_QA_Reviewer__c	Lookup(User)	Captures the name of the person conducting the QA review
Status	MED_QA_Status__c	Picklist	Status of QA review for the Interaction. Status value picklist values include: - Cancelled - Review Required - Review in Progress - Review Completed
Summary	MED_QA_Summary__c	Text Area(255)	Summary of the QA review for the entire Interaction.

List View

The List View custom object contains the custom list views built to view MCM records.

List View schema

Field label	Field name	Data type	Description
Definition	mvn__CM_Definition__c	Long Text Area (32768)	JSON serialization of the list view - this field is automatically populated and should not be edited manually.
List View Name	Name	Auto Number	The name of the list view.
SObject Type	mvn__CM_SObject_Type__c	Text(255)(External ID)	API name of the list view's SObjectType.

Ownership Tracking

The Ownership Tracking object tracks changes in record ownership for the Interaction, Request, Fulfillment, Adverse Event, and Product Quality Complaint objects. Tracking ownership transfer allows detailed ownership reporting.

Ownership Tracking

Field label	API name	Data type	Description
Adverse Event	MED_Adverse_Event__c	Lookup(Adverse Event)	Id of the Adverse Event record that is having ownership tracked.
Business Hours	MED_Business_Hours__c	Lookup(Business Hours)	Id of the Business Hours record used to calculate handle time.
End Time	MED_End_Time__c	Date/Time	Time that ownership was taken by another user/queue or the record was closed.
Fulfillment	MED_Fulfillment__c	Lookup(Fulfillment)	Id of the Fulfillment record that is having ownership tracked.
Handle Time (Days)	MED_Handle_Time_Days__c	Number(10, 2)	Calculates the time (in days) the record was with the owner, using the business hours assigned.
Handle Time (Hours)	MED_Handle_Time_Hours__c	Number(10, 2)	Calculates the time (in hours) the record was with the owner, using the business hours assigned.
Interaction	MED_Case__c	Lookup(Interaction)	Id of the interaction that ownership is being tracked.
Name	MED_Name__c	Text(255)	Name of the user or queue that owns the record being tracked.
Ownership Tracking Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Product Quality Complaint	MED_Product_Quality_Complaint__c	Lookup(Product Quality Complaint)	Id of the Product Quality Complaint record that is having ownership tracked.
Reason	MED_Change_Reason__c	Picklist	Reason that the owner changed.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the record was reopened.
Request	MED_Request__c	Lookup(Request)	Id of the Request that we are tracking ownership.
Start Time	MED_Start_Time__c	Date/Time	Date and time the user took ownership of the record.

Package Job

The Package Job object facilitates Dynamic Document Package (DDP) processing.

Package Job schema

Field label	API name	Data type	Description
Case Id	mvn__MED_Case_Id__c	Text(18)	Id of associated Interaction (Case) record.
DDP1 Delete When Done	mvn__MED_DDP1_Delete_When_Done__c	Checkbox	Indicates whether the DDP is marked for deletion (true) or is not marked for deletion (false).
DDP1 Delivery Option	mvn__MED_DDP1_Delivery_Option__c	Lookup(Delivery Option)	Delivery option associated with the DDP1 record.
DDP1 Error Message	mvn__MED_DDP1_Error_Message__c	Long Text Area(1500)	Stores any available error messages that occur during the DDP process.
DDP1 Id	mvn__MED_DDP1__c	Lookup(DocGen Package)	First DocGen package that is generated by the package job.
DDP1 Status	mvn__MED_DDP1_Status__c	Picklist	Status of the first DDP package. Picklist values include: - None - Pending - Complete - Error
DDP2 Delete When Done	mvn__MED_DDP2_Delete_When_Done__c	Checkbox	Indicates whether the DDP is marked for deletion (true) or is not marked for deletion (false).
DDP2 Delivery Option	mvn__MED_DDP2_Delivery_Option__c	Lookup(Delivery Option)	Delivery option associated with the DDP2 record.
DDP2 Error Message	mvn__MED_DDP2_Error_Message__c	Long Text Area(1500)	Stores any available error messages that occur during the DDP process.
DDP2 Id	mvn__MED_DDP2__c	Lookup(DocGen Package)	Second DocGen package that is generated by the package job.
DDP2 Status	mvn__MED_DDP2_Status__c	Picklist	Status of the second DDP package. Picklist values include: - None - Pending - Complete - Error
DDP3 Delete When Done	mvn__MED_DDP3_Delete_When_Done__c	Checkbox	Indicates whether the DDP is marked for deletion (true) or is not marked for deletion (false).
DDP3 Delivery Option	mvn__MED_DDP3_Delivery_Option__c	Lookup(Delivery Option)	Delivery option associated with the DDP3 record.
DDP3 Error Message	mvn__MED_DDP3_Error_Message__c	Long Text Area(1500)	Stores any available error messages that occur during the DDP process.
DDP3 Id	mvn__MED_DDP3__c	Lookup(DocGen Package)	Third DocGen Package that is generated by the package job.
DDP3 Status	mvn__MED_DDP3_Status__c	Picklist	Status of the third DDP package. Picklist values include: - None - Pending - Complete - Error
Done	mvn__MED_is_Done__c	Formula (Checkbox)	Indicates that none of the DDPs have a status of pending (true) or is not pending (false).
Error	mvn__MED_Has_Error__c	Formula (Checkbox)	Indicates whether any of the DDPs resulted in an error (true) or did not result in an error (false).
Package Job Name	Name	Auto Number	Number that is automatically assigned to the Package Job Name upon creation.
Record Id	mvn__MED_Record_Id__c	Text(18)	Id of record for which the package job is running.
Record Name	mvn__MED_Record_Name__c	Text(80)	Name of the record for which the package job is running. This text displays in the queue and in the notifications.

Product

The Product object contains the list of products used in and has a lookup relationship with the AE Drug, Product Quality Complaint, Request, Document Relationship, and Request Document objects. The Request Document lookup makes it possible to render the Product field on content search.

Note: Always set CM_Product_API_Name to MED_Product__c.

Product schema

Field label	API name	Data type	Description
CMS ID Formula	MED_CMS_ID_Formula__c	Formula (Text)	Resolved value is the value of MED_CMS_Product_ID__c. If MED_CMS_Product_ID__c is blank, the resolved value is the ID of the MED_Product_Family__c in the content management system.
CMS Product ID	MED_CMS_Product_ID__c	Text(128)	ID of the product in the content management system. uses this value to search content.
Country	MED_Country__c	Picklist	List of countries that are applicable to the product. The product lookup component uses this field to filter products that have MED_Product as their record type. General and Reporting Product record type products are not filtered by country. Agents may select this product on a Request if the selected country on the Request matches one of the countries specified in this field or if this field is set to Global (ZZ). When Global (ZZ) is set, the product is visible for all countries.
External ID	MED_External_ID__c	Text(25) (External ID)	Reference ID to an external system. This field is mainly used for dataloading.
First Mention Display Name	MED_First_Mention_Display_Name__c	Text(255)	Name of the product that should display when the product is first mentioned in cover letters and email templates.
Generic Name	MED_Generic_Name__c	Text(255)	Generic name of the product.
Investigational Drug Name	MED_Investigational_Drug_Name__c	Text(255)	Investigational drug name of the product.
Product Display Name	Name	Text(80)	Name of the product that displays in the user interface.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - General Product - contains values for non-therapy products or general products. The Simplified Product Catalogue feature does not affect when this record type is used. - Product - captures the region specific product variation that is shown to users and selected on Requests. This record type is used when the Simplified Product Catalogue feature is off. - Reporting Product - used to group products and designate them all as one product. This record type is used when the Simplified Product Catalogue feature is on.
Reporting Product	MED_Product_Family__c	Lookup(Product)	Lookup to the parent product in the product hierarchy. This field is used to roll-up country specific products to the reporting product for global reporting.
Status	MED_Status__c	Picklist	Indicates if the product is Active or Inactive.
Therapeutic Area	MED_Therapeutic_Area__c	Picklist (Multi-Select)	Therapeutic Area of the product.
Trade Name	MED_Trade_Name__c	Text(255)	Trade Name of the product.

Product Quality Complaint

The Product Quality Complaint object stores information related to potential product quality issues. The issue may be related to manufacturing, stability and release testing, dose preparation, storage, or distribution.

The Product Quality Complaint object has a one-to-many lookup relationship with the Interaction object; a single Interaction record can be associated to multiple Product Quality Complaint records.

Product Quality Complaint schema

Field label	API name	Data type	Description
Address Line 1	MED_Address_Line_1__c	Text(100)	First line of the complainant's address.
Address Line 2	MED_Address_Line_2__c	Text(100)	Second line of the complainant's address.
Alerts	MED_Alerts__c	Formula (Text)	Shows a composite summary of different flags (urgent, roll up, escalated, locked, SLA).
Anonymize	MED_Anonymize__c	Checkbox	Indicates if the record should be anonymized. If True, a workflow removes personally identifiable information (PII) from the record.
Case Thread Token	MED_Case_Thread_Token__c	Formula (Text)	Copy of the related Case thread token that can be used for email merge fields.
City	MED_City__c	Text(40)	City of the complainant's address.
Complainant Name	MED_Complainant_Name__c	Text(255)	Name of the complainant. The field concatenates the First Name, Middle Name, and Last Name field values, but this can be overridden.
Complainant Type	MED_Complainant_Type__c	Picklist	Professional role of the complainant.
Complaint	MED_Complaint__c	Long Text Area(32768)	Text description of the product issue.
Consent to Contact?	MED_Consent_to_Contact__c	Checkbox	Indicates if the complainant consents to being contacted.
Country	MED_Country__c	Picklist	Country where the complainant resides.
Credit/Refund Request?	MED_Credit_Refund_Request__c	Checkbox	Indicates if the reporter requested reimbursement.
Date of Complaint	MED_Date_of_Complaint__c	Date	Date the company first became aware of the complaint.
Date/Time Closed	MED_Date_Time_Closed__c	Date/Time	Date and time record was closed.
Date/Time Opened	MED_Date_Time_Opened__c	Date/Time	Date and time the record was created.
Date/Time Submitted	MED_Date_Time_Submitted__c	Date/Time	Date and time the Product Quality Complaint was submitted to the pharmacovigilance team.
Display Name	MED_Display_Name__c	Formula (Text)	Resolved value becomes the Product Quality Complaint tab label.
Due Date	MED_Due_Date__c	Date/Time	Date and time the record is due to be closed.
Due Date Warning	MED_Due_Date_Warning__c	Date/Time	Hidden field on the layout that is used as a formula helper to provide the time when the Alerts field should display the due date warning icon.
Email	MED_Email__c	Email	Email address of the complainant.
Email To Address	MED_Email_To_Address__c	Text Area(255)	List of email addresses for the local pharmacovigilance team that the Product Quality Complaint information should be emailed to. This list is based on the Local Setting custom metadata.
Escalated?	MED_Escalated__c	Formula (Text)	Displays icon if the Product Quality Complaint is escalated.
Expiration Date	MED_Expiration_Date__c	Date	Date the product responsible for the complaint expires.
Fax	MED_Fax__c	Phone	Fax number of the complainant.
First Name	MED_First_Name__c	Text(40)	First name of the complainant.
Formulation	MED_Formulation__c	Text(255)	Product formulation of the complaint, e.g., 20mg dissolvable tablets.
Interaction	MED_Case__c	Lookup(Interaction)	Lookup to the Interaction associated to the Product Quality Complaint.
Is Closed	MED_Is_Closed__c	Formula (Checkbox)	Indicates if the record is closed.
Is Escalated	MED_Is_Escalated__c	Formula (Checkbox)	Indicates if the Product Quality Complaint is currently escalated to another user. The field is marked as true if the Product Quality Complaint Owner is different than the Interaction Owner.
Last Name	MED_Last_Name__c	Text(80)	Last name of the complainant.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold on the record. If true, the record cannot be modified, anonymized, or deleted.
Locked	MED_Locked__c	Formula (Checkbox)	Formula that determines if the record is locked (true) or unlocked (false). When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or canceled or if a legal hold has been placed on it.
Locked Flag	MED_Locked_Flag__c	Formula (Text)	Displays icon when the record is locked.
Lot Number	MED_Lot_Number__c	Text(35)	Relevant lot number descriptor of the product responsible for the complaint.
Middle Name	MED_Middle_Name__c	Text(40)	Middle name of the complainant.
Missed SLA	MED_Missed_SLA__c	Formula (Checkbox)	Indicates if the SLA was missed. This field is used for reporting.
No. of Units Affected	MED_No_of_Units_Affected__c	Text(255)	Number of units affected by the issue in the complaint.
Owner	MED_Owner_Name_Formula__c	Formula (Text)	Calculates the owner name to use for tracking ownership.
Pharmacy/Wholesaler	MED_Pharmacy_Wholesaler__c	Text(255)	Name of the pharmacy or wholesaler that supplied the product in the complaint.
Phone	MED_Phone__c	Phone	Phone number of the complainant.
Postal Code	MED_Postal_Code__c	Text(20)	Postal code of the address of the complainant.
PQC Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
PQC Owner	MED_Owner_HyperLink__c	Formula (Text)	Hyperlink to Owner record page.
Product	MED_Product__c	Lookup(Product)	Lookup to the Product record the complaint relates to.
QA Summary	MED_QA_Summary__c	Text Area(255)	Summary of the QA review of the Fulfillment record.
Reconciliation Number	MED_Reconciliation_Number__c	Text(25) (External ID)	External ID to the quality system that the Product Quality Complaint is submitted to.
Record Type	RecordTypeId	Record Type	Id of the record type. Record types include: - Product Quality Complaint - Product Quality Complaint - Closed
Related AE	MED_Adverse_Event__c	Lookup(Adverse Event)	Lookup to a related Adverse Event record.
Related Request	MED_Request__c	Lookup(Request)	Related Request record used to create the Product Quality Complaint.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the Product Quality Complaint record was reopened. This field uses the Reopen Reason Value set.
Sample Available?	MED_Sample_Available__c	Checkbox	Indicates if the complainant can provide a sample of the product for investigation.
SLA Flag	MED_SLA_Flag__c	Formula (Text)	Visual indicator for the service-level agreement (SLA) status of the Product Quality Complaint.
State	MED_State__c	Picklist	Indicates the state where the complainant resides. This field uses the State Value set.
Status	MED_Status__c	Picklist	Status of the record. The record is locked when closed, and the record is locked and removed from reporting when canceled.
Strength	MED_Strength__c	Text(10)	Dosage strength of the product responsible for the complaint.
Suffix	MED_Suffix__c	Text(40)	Suffix of the complainant's name.
Transfer Reason	MED_Transfer_Reason__c	Picklist	Reason the record was transferred or escalated.

Region

Regions are customer-defined geographical areas that can be associated to documents as metadata. Regions are configured with the Region (mvn__Region__c) custom object and can be configured as a hierarchy through associations to other regions and countries (mvn__Country__mdt). For example, the North America region might have three child regions: Canada, Mexico, and United States.

mvn__Region__c schema

Field label	API name	Data type	Description
Country	mvn__Country__c	Text(255) (External ID)	DeveloperName of the mvn__Country__mdt record associated to this region. The value you enter must match an existing mvn__Country__mdt record, or an error will occur.
Country ISO Code	mvn__Country_ISO_Code__c	Text(2) (External ID)	mvn__ISO_Code__c of the mvn__Country__mdt record associated to this region.
Parent Region	mvn__Parent_Region__c	Lookup(Region)	Parent region.
Region Name	Name	Text(80)	Name of the region.
Type	mvn__Type__c	Picklist	Type of the region.

Request

The Request object stores information about medical inquiries and provided responses. The Request object has a one-to-many lookup relationship with the Interaction object; a single Interaction record can be associated to multiple Request records.

Request schema

Field label	API name	Data type	Description
Account	MED_Account__c	Lookup(Account)	Copy of requester from related Interaction. Used for reporting and related lists on accounts.
Alerts	MED_Alerts__c	Formula (Text)	Composite field that shows a summary of different flags (urgent, roll up, escalated, locked, SLA) in the Alerts field.
Anonymize	MED_Anonymize__c	Checkbox	Flags the record to be anonymized. If True, removes personally identifiable information (PII) from the record.
Case Thread Token	MED_Case_Thread_Token__c	Formula (Text)	Copy of the related Case thread token that can be used for email merge fields.
Category	MED_Category__c	Picklist	Category of the Request. Available picklist values for this field depend on the selected value for Type.
Changed Due Date Reason	MED_Changed_Due_Date_Reason__c	Text Area(255)	Reason the record's due date from the local SLA was changed. This field is required if the due date was manually changed.
Cloned From	MED_Cloned_From__c	Lookup(Request)	Holds a lookup to the source Request if this Request was created by cloning a previous Request.
Consent Expiry Date	MED_Consent_Expiry_Date__c	Date	Date when the requester's consent expires. Any content updates pertaining to this Request will not be shared with the requester after this expiry date.
Contains Off Label Information?	MED_Contains_Off_Label_Information__c	Picklist	Indicates if the inquiry answer contains off-label information.
Country	MED_Country__c	Picklist	Country of the Request. Used for sharing.
Date/Time Closed	MED_Date_Time_Closed__c	Date/Time	The date and time when the Request is closed.
Date/Time Open	MED_Date_Time_Opened__c	Date/Time	The date and time when the Request is created.
Display Name	MED_Display_Name__c	Formula (Text)	Resolved value determines the Request tab label.
Due Date	MED_Due_Date__c	Date/Time	Date and time when the Request should be completed. The due date is based on the local SLA.
Due Date Warning	MED_Due_Date_Warning__c	Date/Time	Hidden field on the layout used as a formula helper to provide the time when the flag should be displayed.
Eligible for Follow-up	MED_Eligible_for_Follow_up__c	Formula (Checkbox)	Indicates that content updates are available to be shared with the requester pertaining to this Request.
Escalated	MED_Escalated2__c	Checkbox	Indicates if the Request was escalated by the Escalation Trigger during Ownership Transfer. recommends setting the value on the Is Escalated (MED_Is_Escalated__c) field to mirror this field value.
Escalated?	MED_Escalated__c	Formula (Text)	Displays an icon if the Request is currently escalated.
Follow-up Reason	MED_Follow_up_Reason__c	Long Text Area(1000)	Includes notes and/or rationale for why a follow-up request should be considered.
Inbound Form	MED_Inbound_Form__c	Lookup(Inbound Form)	Inbound form that is generated from the Request.
Interaction	MED_Case__c	Lookup(Interaction)	Lookup to the Interaction associated to this Request.
Is Closed	MED_Is_Closed__c	Formula (Checkbox)	Indicates if the Request is closed.
Is Escalated	MED_Is_Escalated__c	Formula (Checkbox)	Indicates if the Request is currently escalated to another user.
Urgent	MED_Is_Urgent__c	Checkbox	Indicates whether the Request is marked as urgent.
Legal Hold	MED_Legal_Hold__c	Checkbox	Indicates if there is a legal hold. If true, the record cannot be modified, anonymized, or deleted.
Locked	MED_Locked__c	Formula (Checkbox)	Indicates if the record is locked. When locked, a record cannot be modified, anonymized, or deleted. The record is locked if it is closed or canceled or if a legal hold has been placed on it.
Locked Flag	MED_Locked_Flag__c	Formula (Text)	Displays an icon when the record is locked.
Missed SLA	MED_Missed_SLA__c	Formula (Checkbox)	Indicates if the SLA for the Request was missed. This field is used for reporting Requests that missed SLA.
No Response Reason	MED_No_Response_Reason__c	Picklist	Reason that the Request was closed without providing a response.
Off Label?	MED_Off_Label__c	Checkbox	Indicates if off-label information was provided in the response.
Opt-Out Date	MED_Opt_Out_Date__c	Date	Date when a requester has requested to opt out of future content updates pertaining to a specific Request.
Owner	MED_Owner_Name_Formula__c	Formula (Text)	Calculates the owner name to use for tracking ownership.
Override Lock	MED_Override_Lock__c	Checkbox	Allows a locked Request to be edited.
Preferred Delivery Method	MED_Preferred_Delivery_Method__c	Picklist	Indicates the delivery method requested by the customer.
Product	MED_Product__c	Lookup(Product)	Product of the Request.
QA Summary	MED_QA_Summary__c	Text Area(255)	Summary of the QA review of the Request record.
Question	MED_Question__c	Long Text Area(32768)	Inquiry from the customer.
Question	MED_Question_Rich__c	Rich Text Area(32768)	Inquiry from the customer.
Record Type	RecordTypeId	Record Type	ID of the record type. Record types include: - Request - Request - Closed
Referred By Info	MED_Referred_By_Info__c	Formula (Text)	Summary of the referred by account.
Related to Off Label Use?	MED_Related_to_Off_Label_Use__c	Picklist	Indicates if the inquiry is related to an off-label use of the product.
Reopen Reason	MED_Reopen_Reason__c	Picklist	Reason the Request was reopened.
Request Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Request Owner	MED_Owner_HyperLink__c	Formula (Text)	Hyperlink to the Owner record page.
Requester Consent	MED_Requestor_Consent__c	Checkbox	If checked, indicates if the requester has consented to receiving updated information in response to this request.
Requester Info	MED_Requester_Info__c	Formula (Text)	Requester's name and record type.
Response Type	MED_Response_Type__c	Picklist	Categorizes how the response was provided to the requester.
Short Question	MED_Short_Question__c	Text(75)	Truncated value for the question that is used in the display name.
Signature	MED_Signature_HyperLink__c	Formula (Text)	Formula field that builds the hyperlink to the Signature Image that appears in a user interface component.
SLA Flag	MED_SLA_Flag__c	Formula (Text)	Displays an image to indicate the status of the Request based on the due date. - Red = Past Due - Orange = Due in 24 hours
Status	MED_Status__c	Picklist	Indicates the state of the Request. When the Request is closed or canceled, the record is locked. When the Request is canceled, the record is removed from reporting.
Sub-Category	MED_Sub_Category__c	Picklist	Subcategory of the main Request category.
Target Follow-up Date	MED_Target_Follow_up_Date__c	Date	Indicates when updated information for a particular Request may be available to share with the requester.
Transfer Reason	MED_Transfer_Reason__c	Picklist	Reason the record was transferred/escalated.
Type	MED_Type__c	Picklist	The type of inquiry from the requester.
Urgent Flag	MED_Urgent_Flag__c	Formula (Text)	Indicates if any Requests listed in the Alerts field are marked as urgent.
Verbal Response Details	MED_Verbal_Response_Details__c	Long Text Area(32768)	Details of the verbal response provided.
Verbal Response Details	MED_Answer_Rich__c	Rich Text Area(32768)	Details of the verbal response provided.

Request Document

A Request Document record links a Request record to a document that is used to answer the Request. Fields on the Request Document object are mapped to document fields in the content management system(s) that your instance of is integrated with. When a content management system field has a value, the value is automatically stamped to the Request Document field that the content management system field maps to. Visit Integrations.

The Request Document object has a one-to-many lookup relationship with the Request object. Multiple Request Document records can be associated to the same Request record.

Request Document schema

Field label	API name	Data type	Description
Allowed Audience	MED_Allowed_Audience__c	Picklist (Multi-Select)	Indicates who is allowed to view the content.
Answer	MED_Answer__c	Long Text Area(32768)	Answer to the question that the document addresses.
Answer	MED_Answer_Rich__c	Long Text Area(32768)	Answer to the question that the document addresses.
Classification	MED_Classification__c	Picklist	Classification of the document. Classification is the third level down in the document tree (Type->Subtype->Classification).
Country	MED_Search_Country__c	Picklist	Single select country field used in Lightning document search. Country values should be stamped to the multi-select MED_Country__c field. See Search Content.
Country	MED_Country__c	Picklist (Multi-Select)	Country or countries the document applies to. For Classic document search, MED_Document_Field_Setting__mdt.MED_Picklist_Rows__c makes the MED_Country__c field render as a single select picklist field on search layouts. Rather than using this multi-select field, Lightning document search uses MED_Search_Country__c, which is a single select field. See Search Content.
Custom Response	MED_Custom_Response__c	Checkbox	Indicates whether the document represents a custom response that is only intended for one particular Request (true) or not (false).
Delivery Option	MED_Delivery_Option__c	Picklist	Determines how a request document file is handled when a Fulfillment package is generated.
Document Number	MED_Document_Number__c	Text(255)	Document Number of the document.
External ID	MED_External_ID__c	Text(18)	ID from the content management system for the mapped document.
External Link	MED_External_Link__c	URL(255)	Link to the document that requesters can access. This link will be included in the Fulfillment cover letter. When this field is populated, uncheck MED_Include_in_Fulfillment__c, so the Fulfillment package will not include the full document.
Fair Market Value	MED_Fair_Market_Value__c	Currency(5, 2)	Fair market value of the document for transparency purposes.
File Extension	MED_File_Extension__c	Text(255)	File extension type of the document.
Include Full Doc in Letter	MED_Include_in_Fulfillment__c	Checkbox	Indicates whether the Fulfillment package should include the response document (true) or whether the Fulfillment cover letter should include an external link to the document (false).
Language	MED_Language__c	Picklist	Language of the document.
Location	MED_Location__c	Picklist	Location in where the running user is currently active. The Work Instructions component uses this field to render a preview of relevant, internal documentation files.
Major Version	MED_Major_Version__c	Text(10)	Major version number of the document.
Minor Version	MED_Minor_Version__c	Text(10)	Minor version number of the document.
Name	MED_Name__c	Text(255)	Name of the document.
Preview	MED_Preview__c	Rich Text Area(32768)	Preview of the document.
Product	MED_Product__c	Lookup(Product)	Product associated with the document. Document search uses this field.
Product List	MED_Product_List__c	Long Text Area(32768)	Stamped list of products this document applies to.
Question	MED_Question__c	Long Text Area(32768)	Question that the document answers.
Question	MED_Question_Rich__c	Rich Text Area(32768)	Question that the document answers.
Related Request(s)	MED_Related_Requests__c	Long Text Area(1000)	Lists other Requests that are related to the document as a Custom Response (i.e. MED_Custom_Response__c equals true).
Request	MED_Request__c	Master-Detail(Request)	Id of the Request record that the content is related to.
Request Closed	MED_Request_Closed__c	Formula (Checkbox)	Indicates whether the parent Request record is closed (true) or not closed (false).
Request Document Number	Name	Auto Number	Number that is automatically assigned to the Request Document record upon the record's creation.
Request Locked	MED_Request_Locked__c	Formula (Checkbox)	Indicates whether the parent Request record is locked (true) or not locked (false).
Rich Text Content	MED_Rich_Text_Content__c	Rich Text Area(32768)	A rich text field. For documents without files, content in this field will appear in the document preview. Merge fields are supported. For more information, reference Salesforce's documentation on Merge Fields.
Size	MED_Size__c	Number(16, 2)	Size of the associated document.
Sort Order	MED_Sort_Order__c	Number(4, 0)	Order the document is sorted in the Work Instructions component. The document with the lowest number is displayed first.
Source	MED_Source__c	Picklist	Developer name of the MED_CMS_Connection__mdt that the mapped document is sourced from.
Subtype	MED_Subtype__c	Picklist	Subtype of the document. Subtype is the second level down in the document tree (Type->Subtype->Classification).
Summary	MED_Summary__c	Long Text Area(1000)	Summary of the document.
Type	MED_Type__c	Picklist	Type of the document. Type is the first level in the document tree (Type->Subtype->Classification).
Uploaded Manually	MED_Uploaded_Manually__c	Checkbox	Indicates whether the document was uploaded manually (true) or retrieved from a library of documents in a content management system (false).
Version	MED_Version__c	Formula (Text)	Resolved value represents the full version number of the document. The full version number includes the document's major and minor version numbers.

Request Fulfillment

The Request Fulfillment object tracks which Request records were answered in a Fulfillment. Fields on the Request Fulfillment object are mapped to Request fields. When a Request field has a value, the value is automatically stamped to the Request Fulfillment field that the Request field maps to.

The Request Fulfillment object is a junction between the Fulfillment and Request objects and is on the detail side of master-detail relationships with both of the objects it connects.

Request Fulfillment schema

Field label	API name	Data type	Description
Category	MED_Category__c	Formula (Text)	Category of the associated Request record.
Fulfillment	MED_Fulfillment__c	Master-Detail(Fulfillment)	Lookup to the Fulfillment record that stores the written response to the associated Request record.
Off Label?	MED_Off_Label__c	Formula (Checkbox)	Indicates whether off-label information is provided (true) or not provided in the response (false).
Preferred Delivery Method	MED_Preferred_Delivery_Method__c	Formula (Text)	Delivery method of the associated Request record.
Product Display Name	MED_Product_Display_Name__c	Formula (Text)	Name of the product that will display in the associated Fulfillment Package.
Product First Mention Display Name	MED_Product_First_Mention_Display_Name__c	Formula (Text)	Name of the product that will display the first time it appears in the associated Fulfillment Package.
Question	MED_Question__c	Long Text Area(32768)	Inquiry from the customer on the associated Request record.
Question	MED_Question_Rich__c	Rich Text Area(32768)	Inquiry from the customer on the associated Request record.
Request	MED_Request__c	Master-Detail(Request)	Lookup to the Request record that will be answered via the associated Fulfillment record.
Request Fulfillment Number	Name	Auto Number	Number that is automatically assigned to the record upon the record's creation.
Status	MED_Status__c	Formula (Text)	Status of the associated Request record.
Type	MED_Type__c	Formula (Text)	Type of the associated Request record.
Verbal Response Details	MED_Verbal_Response_Details__c	Long Text Area(32768)	Details of the verbal response provided to the requester.
Verbal Response Details	MED_Answer_Rich__c	Rich Text Area(32768)	Details of the verbal response provided to the requester.

System Event Staging

The System Event Staging object contains the settings for processing system events.

System Event Staging schema

Field label	Field name	Data type	Description
External ID	mvn__SE_External_Id__c	Text (36) (External ID)	For Apex DML purposes.
New Records	mvn__SE_New_Records__c	Long Text Area (131072)	Serialized payload for the new records related with this system event.
Old Records Map	mvn__SE_Old_Records_Map__c	Long Text Area (131702)	Serialized payload for the old records related with this system event.
Order	mvn__SE_Order__c	Number (18, 0)	Order that system events are reported in the course of a transaction.
System Event Name	mvn__SE_System_Event_Name__c	Text (80)	The DeveloperName of the related SE_System_Event__mdt record.
System Event Staging Name	Name	Auto Number	Autogenerated name.
Transaction ID	mvn__SE_Transaction_ID__c	Text (36) (External ID)	Reference to the original transaction that fired the system event.

Translation Request

The Translation Request (mvn__CT_Request__c) custom object stores the information of each translation request and enables users to audit records of translation processes.

mvn__CT_Request__c schema

Field label	API name	Data type	Description
Data	mvn__CT_Data__c	Long Text Area(131072)	The data to be translated.
Error	mvn__CT_Error__c	Long Text Area(131072)	The error message, if any, that is generated by the translation vendor.
External Id	mvn__CT_ExternalId__c	Text(255) (External ID)	The related external ID.
Record Id	mvn__CT_RecordId__c	Text(18)	The related Salesforce record ID.
Request	Name	Auto Number	The auto-generated number for the Translation Request record. It is formatted as DTS-\{0000\}.
Requestor	mvn__CT_Requestor__c	Text(255)	The application that is requesting the translation.
Source Language	mvn__CT_SourceLanguage__c	Text(255)	The original language of the data or content to be translated.
Status	mvn__CT_Status__c	Picklist	The current status of the translation request. Picklist values are: - Requested - Submitted - Completed - Cancelled
Target Language	mvn__CT_TargetLanguage__c	Text(255)	The target language that the data or content is to be translated to.
Type	mvn__CT_Type__c	Picklist	The type of the translation request. Picklist values are: - Data - Content
Vendor	mvn__CT_Vendor__c	Text(255)	The vendor that is performing the translation.
Vendor Data	mvn__CT_VendorData__c	Long Text Area(131072)	The data used by the vendor to perform the translation.

Vendor Region

The Vendor Region (mvn__CT_VendorRegion__c) custom object is a junction object that links the Region (mvn__Region__c) object and the Translation Vendor (mvn__CT_Vendor__mdt) metadata object. It enables translation requests to be routed to various translation vendors based on the selected region(s).

mvn__CT_VendorRegion__c schema

Field label	API name	Data type	Description
Is Content Translation Enabled	mvn__CT_IsContentTranslationEnabled__c	Checkbox	When true, content translation is enabled.
Is Data Translation Enabled	mvn__CT_IsDataTranslationEnabled__c	Checkbox	When true, data translation is enabled.
Priority	mvn__CT_Priority__c	Number(18, 0)	The order of priority that the vendor has for the given region. The lower the number, the higher the priority.
Region	mvn__CT_Region__c	Master-Detail(Region)	The parent Region (mvn__Region__c) record. This represents a region that the vendor provides translation services for.
Vendor Developer Name	mvn__CT_VendorDeveloperName__c	Text(40) (External ID)	The API name of the related Translation Vendor (mvn__CT_Vendor__mdt) metadata record. This represents a vendor that a translation request will be routed to given the selected region.
Vendor Region Name	Name	Auto Number	The auto-generated number for the Vendor Region record. It is formatted as VR-\{000000\}.

Workflow Instance

When a workflow becomes active, a record is inserted to CM_Workflow_Instance__c to track its progress.

mvn__CM_Workflow_Instance__c schema

Field label	API name	Data type	Description
Workflow Developer Name	mvn__CM_Workflow_Developer_Name__c	Text(40)	DeveloperName of the Workflow__mdt record associated to this instance.
Outcome	mvn__CM_Outcome__c	Picklist	The outcome of the workflow as defined by the final stage's CM_Final_Stage_Outcome__c value on CM_Workflow_Stage__mdt.
Status	mvn__CM_Status__c	Picklist	The status of the instance of the workflow.
Workflow Instance Name	Name	Auto Number	Autogenerated name.

Workflow Instance Activity Content

The Workflow Instance Activity Content object serves as a junction to assist in including workflow instance content attachments as attachments to system event notifications.

mvn__CM_Workflow_Instance_Activity_Content__c schema

Field label	API name	Data type	Description
Content Version Id	mvn__CM_Content_Version_Id__c	Text(18) (External ID)	The ID of the Content Version (ContentVersion) record, or the file to be attached to a system event (e.g., email) notification.
Workflow Instance	mvn__CM_Workflow_Instance__c	Lookup(Workflow Instance)	The parent Workflow Instance (mvn__CM_Workflow_Instance__c) record.
Workflow Instance Activity Dev Name	Workflow Instance Activity Dev Name	Text(40) (External ID)	The API name of the related Workflow Stage Activity (mvn__CM_Workflow_Stage_Activity__mdt) metadata record, or the workflow stage for which a system (e.g., email) notification with content attachments may be sent out for.

Workflow Instance Document

Workflow Instance Documents contain the list of documents associated to Workflows. They connect Document Versions to Workflow Instances. Workflow Instance Documents are defined in the CM_Workflow_Instance_Documents__c custom object.

Note: While the data model supports associating multiple documents to a workflow, multi-document workflows are not supported.

mvn__CM_Workflow_Instance_Document__c schema

Field label	API name	Data type	Description
Document	mvn__CM_Document__c	Master-Detail(Document)	Document associated to this instance.
Document Version	mvn__CM_Document_Version__c	Lookup(Document Version)	Version associated to this instance.
Document Version Entry State	mvn__CM_Document_Version_Entry_State__c	Text(255)	State of the version when it entered the workflow.
Workflow Instance	mvn__CM_Workflow_Instance__c	Master-Detail(Workflow Instance)	Instance of a workflow.
Workflow Instance Document Name	Name	Auto Number	Autogenerated name.

Workflow Instance Stage

A Workflow Instance Stage record is created every time a workflow transitions to a new stage and is associated to a Workflow Instance. Workflow Instance and Workflow Instance Stage are associated by a one-to-many relationship. Workflow Instance Stages are defined in the CM_Workflow_Instance_Stage__c custom object.

mvn__CM_Workflow_Instance_Stage__c schema

Field label	API name	Data type	Description
Active	mvn__CM_Active__c	Text(40)	DeveloperName of the Workflow__mdt record associated to this instance.
Pending Activity Assignment	mvn__CM_Pending_Activity_Assignment__c	Checkbox	If checked, this stage requires manual intervention to assign activities.
Previous Stage	mvn__CM_Previous_Stage__c	Lookup(Workflow Instance Stage)	Pointer to the previous stage.
Transaction IDs	mvn__CM_Transaction_IDs__c	Long Text Area(32768)	Comma-separated list of Transaction IDs to associate to the stage for event orchestration purposes.
Workflow Instance	mvn__CM_Workflow_Instance__c	Lookup(Workflow Instance)	Workflow instance associated to this stage.
Workflow Instance Stage Name	Name	Auto Number	Autogenerated Name.
Workflow Stage Developer Name	mvn__CM_Workflow_Stage_Developer_Name__c	Text(255)	DeveloperName of the Workflow_Stage_mdt record associated to this instance.
